MITSUBISHI Escalator

MITSUBISHI Escalator Series K

MITSUBISHI Escalator Series K

Shanghai Mitsubishi Elevator is from Japanese Mitsubishi, a base of elevators and escalators in Shanghai, is offering various kinds of K series escalators to meet different customer demands. Mitsubishi Elevator Shanghai is providing safety escalators and commercial elevators for shopping centers, airports, railway stations and commercial buildings. Welcome to use Mitsubishi escalators.

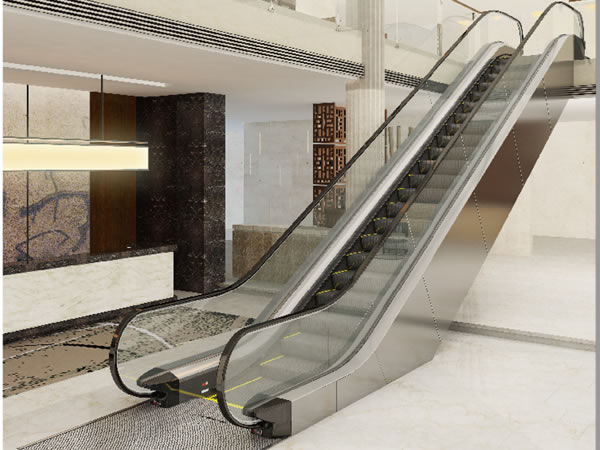

Fashionable Appearance

Fashionable Appearance

The streamline handrail of Mitsubishi escalator is elegant and safe. The classic style, gorgeous style (with lighting) and simple style are available for different occasions. With a variety of colors, the handrails can match the cover boards and skirtboards of different textures, to meet the needs of different environments.
The handrail is antibacterial, safe and secure, leading a healthy trend.
It can be mounted on glasses of different colors, and looks elegant.

Optimal Space-Saving Design

Optimal Space-Saving Design

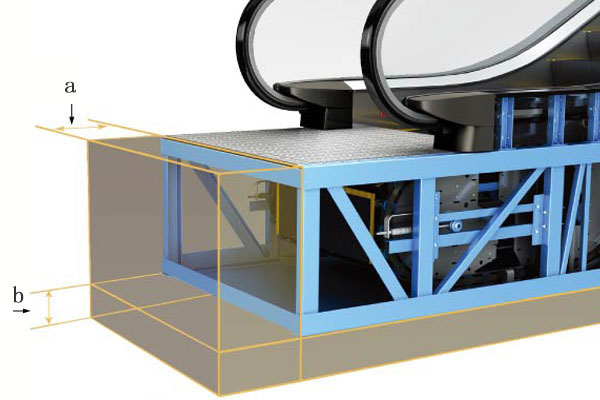

The compact design for Mitsubishi escalator significantly reduces the size of the civil engineering, to save space.
a. The minimum span size significantly saves the area of civil engineering.
b. The deep depth of bottom machine room enables a free layout.

Efficient Transmission and Energy Conservation

Efficient Transmission and Energy Conservation

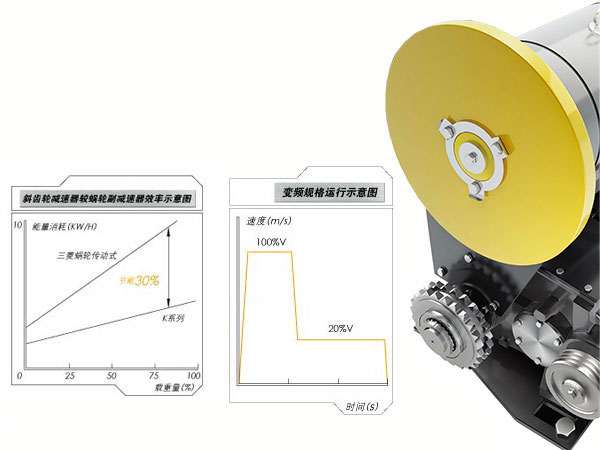

The high precision and high efficiency helical gear units have a higher efficiency than the conventional worm gear units, fully guaranteeing the efficient use of energy.
For the frequency conversion type Mitsubishi escalator, the passenger flow can be detected in several modes. It stops automatically when there is no passenger, to avoid invalid operation and save electricity.

Safety First Principle of Mitsubishi

 Safety first principle of Mitsubishi

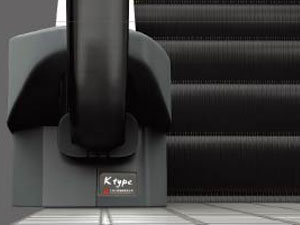

Following the consistent tradition of the Shanghai Mitsubishi, the handrail inlet is hidden, greatly reducing the risk of nipping. The long and soft protection cover of handrail inlet adds another protection for passengers.
Stainless steel step with light yellow demarcation on three sides looks nice and reminds passengers to be careful. The black electrophoretic coating makes the steps beautiful and antirust. The safety device even exceeds the national standard. Other functions are also optional, caring for the safety of passengers.
The antibacterial handrail provides safety and eliminates the psychological barrier of passengers.
The disc brake makes the structure more compact and the braking more stable.

Excellent Craftsmanship and Quality

The large-scale special tooling guarantees the accuracy and the quality of escalator.
The drive sprocket directly engages with wear-resistant resin step rollers, to avoid the rigid impact. The engagement is quiet.
Upper and lower reversing mechanism is designed in one piece with the rail to guarantee the seamless transition of curved transmission and reversing, to significantly reduce the horizontal and vertical vibration.
The axis positioning mode improves the engagement accuracy and reduces assembly workload.
The stainless steel landing plate features high intensity, small deformation and h3er wear resistance. It guarantees the quality of the escalator.
The truss is made of steel angles, because it is easy to conduct antirust treatment on steel angles, but difficult on rectangular steel tubes. The rectangular steel tubes are of thin wall, so that the intensity and the rigidity will be largely affected. In terms of same cross section, the truss made of steel angle has a smaller deflection and is difficult to deform.

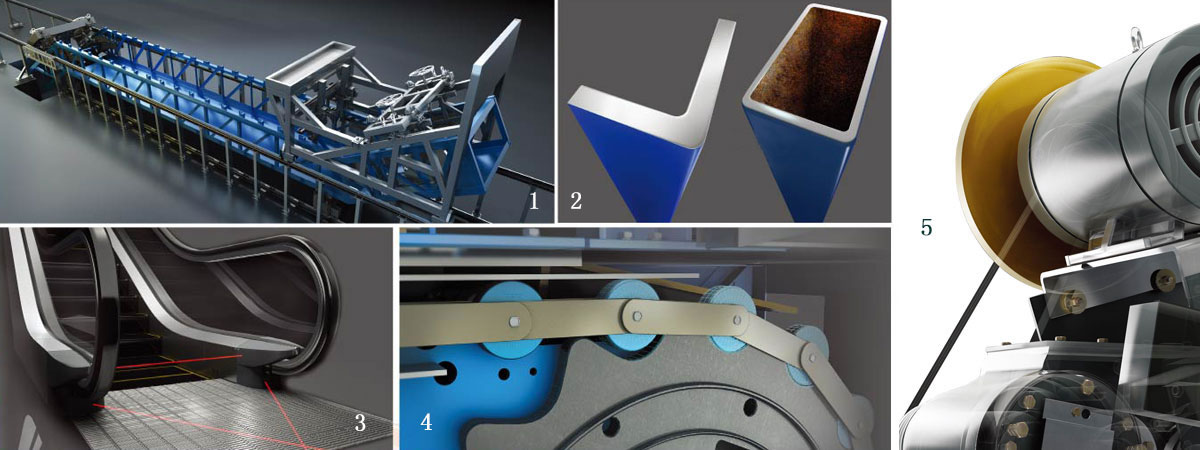

Excellent Craftsmanship and Quality

1. Large assembly tooling
2. Comparison of steel angle and rectangular steel tube
3. Photoelectric sensor of passengers
4. Upper sprockets
5. Disc brake

Meet Different Decoration Needs in Different Environments

K series Mitsubishi escalator looks simple and elegant with first class texture. We have different styles of Mitsubishi escalators to meet different decoration styles. The inlet of the handrail is streamline, making the handrail elegant and safe.
The main parts are made of brushed stainless steel plates. The guardrail can be made into various styles by combining tempered glass, stainless steel plates, or other materials.
The handrails and the interior plates are available in various colors.
The classic style, gorgeous style (with lighting) and simple style are optional for commercial applications.

  • Various colors for handrails

    Various colors for handrails

  • Various colors for interior glass plates

    Various colors for interior glass plates

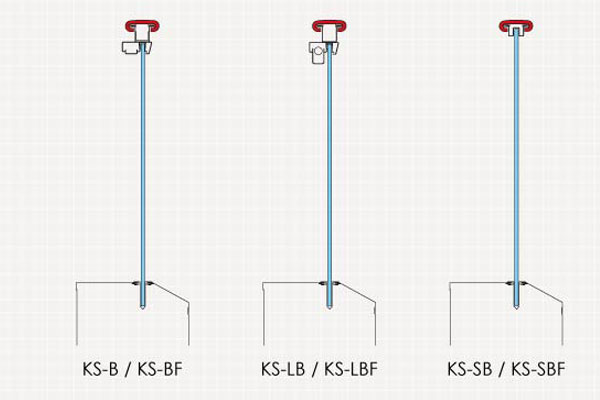

  •  Styles of handrails

    Styles of handrails

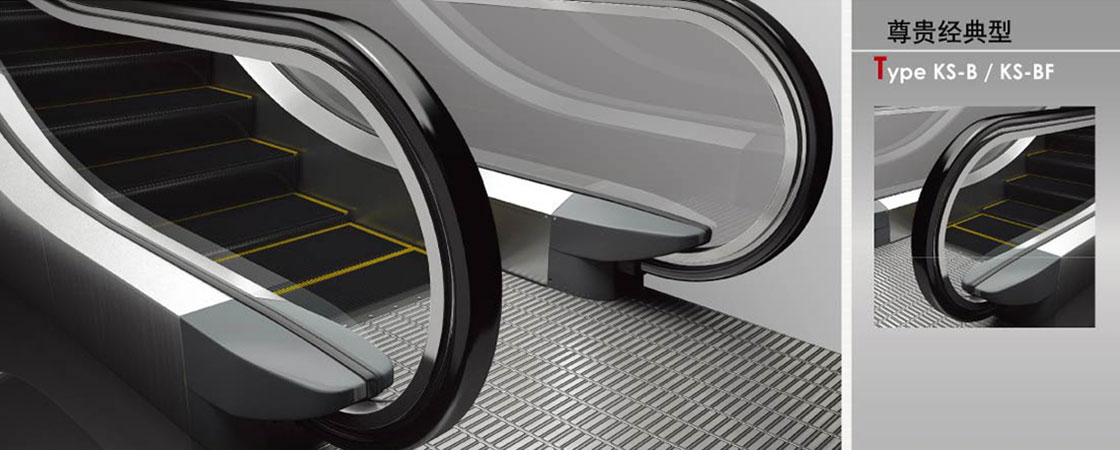

Classic style KS-B / KS-BF

Classic style KS-B / KS-BF

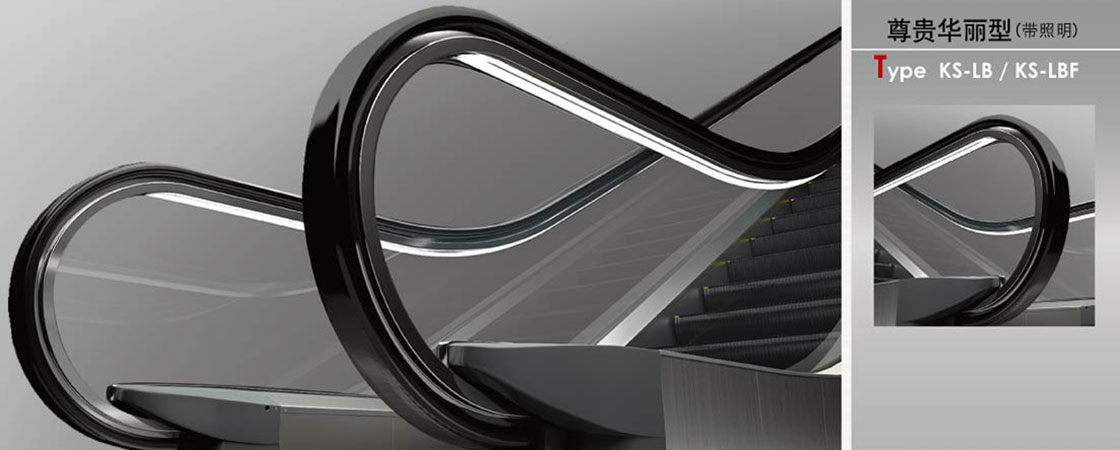

Gorgeous style KS-LB / KS-LBF (with lighting)

Gorgeous style KS-LB / KS-LBF (with lighting)

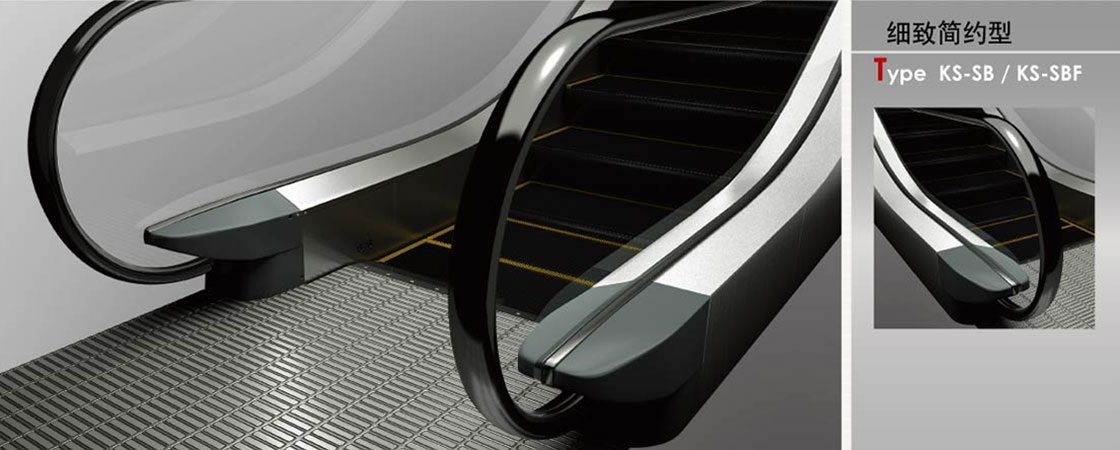

 Simple style KS-SB / KS-SBF

Simple style KS-SB / KS-SBF

1. Interior Panel of Guardrail
Standard configuration / Rectangular glass plates with joints are perpendicular to the moving direction of steps.
Optional configuration / Parallelogram glass plates with joints perpendicular to the horizontal plane
Thickness: Standard thickness: 8mm, optional thickness: 10mm

2. Handrail
Standard configuration / Black
Optional configuration / Vermilion, red, yellow, green, blue, gray, brown, dark red, bright green, light brown

3. Lighting
Standard configuration/ Lighting under steps (KS-SB/KS-SBF/KS-B/KS-BF)
Optional configuration/ Lighting under steps cascaded + lighting under handrails (KS-LB / KS-LBF)

4. Handrail guide rail
Standard / Brushed stainless steel

5. Step body
Standard configuration / stainless steel steps with black coating

6. Handrail inlet protection

7. Cover Standard configuration / Brushed stainless steel

8. Skirt guard Standard configuration / Brushed stainless steel

9. Floor Number Standard configuration/ None
Optional configuration / Configurable
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, M, M1, M2, R, B3

10. Step demarcation line Standard configuration / Yellow molded resin at lateral sides and the front side
Bright yellow step demarcation lines at three sides for reminding passenger to be careful.
Black electrophoretic coating for antirust treatment.

11. Comb plate Standard configuration / Aluminum

12. Decorative panels Standard configuration / Non-slip stainless steel plate

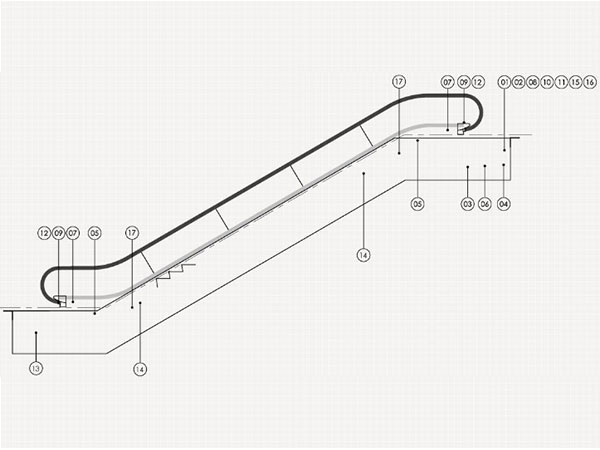

Features

Function Code Description Remark
Standard Functions
01 Protection of phase dislocation and phase loss 3E When phase dislocation or phase loss of input power supply occurs, the main circuit and control circuit will be cut off, in order to automatically stop the escalator.
02 Non-operation reversal protection ARP If reverse movement occurs by accident during operation, the device will cut off the power supply of driving unit and brake.
03 Additional brake AUX-BK The additional brake system will stop the escalator before that the operating speed is 1.4 times higher than the rated speed, or when the running direction changes. When lifting height exceeds 6000mm
04 Operating brake MUSTACHE The driving device is equipped with an operating brake. When the operating brake works, the escalator will stop.
05 Safety device of comb plate CSS If something gets stuck between comb plate and the pedal, the device will cut off the power supply of the driving unit and the brake.
06 Safety device of drive chain DCS If the drive train breaks or elongates abnormally, the device will cut off the power supply of driving unit and brake.
07 Emergency stop button E-STOP When an emergency occurs, press the emergency stop button to cut off the power supply of driving unit and brake.
08 Speed limiting device for low speed GOV If the speed is lower than rated speed by 20%, the device will cut off the power supply of motor and brake.
09 Handrail inlet cover HGB The long, flexible rubber cover covers at the handrail inlet, to avoid pinching or other accidents.
10 Speed limiting device 1 HGD1 The device will cut off the power supply of driving unit and brake when the operating speed reaches 1.2 times of the rated speed.
11 Speed limiting device 2 HGD2 In the operating speed exceeds the rated speed of 1.4 times before, the device operation, and cut off the additional brake power. When the lifting height exceeds 6000mm
12 handrail entry safety device HGS If a foreign object into the handrail at the entrance card, the device will shut down the drive and the host of the brake power.
13 step chain safety device SCS If the rung-strand breaks or abnormal elongation, the device will cut off the host drive and brake power.
14 Cascade subsidence safety device SRS If any part of the rung subsidence damage can not be properly engaged with the upper or lower comb plate, the device will cut off the host drive and brake power.
Optional Functions
15 signal interface means BA This output means escalator basic operational status signal. When the Model KS-LB, KS-SB, KS-B can only choose one time
16 Elevator Monitoring System SMOS-II The system uses state of the computer operation and fault monitoring of the escalator or walkway
17 skirting safety device SSS When a foreign body is sandwiched between steps and skirting, the device will shut down the drive and the host of the brake power.
Features

Basic Specific

project Specifications Content Remark
Armrest nominal width (mm) 1200 1000 800 *
Width between the armrest (mm) 1228 1028 828
Escalator nominal width (mm) 1000 800 600
Theory of transmission capacity (person / hour) 9000 6750 4500
Series Model KS-B/KS-LB, KS-LB/KS-LBF, KS-SF/KS-SBF
The inclination angle (degrees) 30, 35
Speed (m / S) 0.5
Escalators lift height (mm) 1400-7000 The inclination angle is 30 ° when
1606-6000 The inclination angle is 35 ° when
Power supply 380V50Hz three-phase
Lighting power 220V50Hz single-phase
Cascade horizontal movement distance (mm) 800 (Level 2 step); 1200 (Level 3 rungs) Lifting height (HE) ≦ 6000mm when
1200 (Level 3 rungs) Lifting height (HE) > 6000mm when
Environment indoor
Passengers photoelectric type Built-in skirt photoelectric Frequency specifications, step ladders, multi ladder select Configure
External photoelectric column Frequency specifications, single-staircase, the choice of configuration (with Shanghai Mitsubishi Elevator Co.,Ltd. multi ladder)

Note: For model KS-SB/KS-SBF, the handrail nominal width of 800mmis not available.

Power Supply Data

Power Supply for Running (3 Phases)

Handrails nominal width Lifting height by HE (mm) Power supply capacity (kVA)
1200 HE ≦ 4000 8
4000 < HE ≦ 6000 10.4
6000 < HE ≦ 7000 12.5
1000 HE ≦ 5000 8
5000 < HE ≦ 7000 10.4
800 HE ≦ 7000 8

Power Supply for Lighting (Single Phase)

Series Model Lighting height by HE (mm) Power supply capacity (kVA)
KS-LB/KS-LBF HE ≦ 4000 2
4000 < HE ≦ 6000 2.3
6000 < HE ≦ 7000 2.5
KS-B/KS-BF HE ≦ 7000 1.3
KS-SB/KS-SBF HE ≦ 7000 1.3

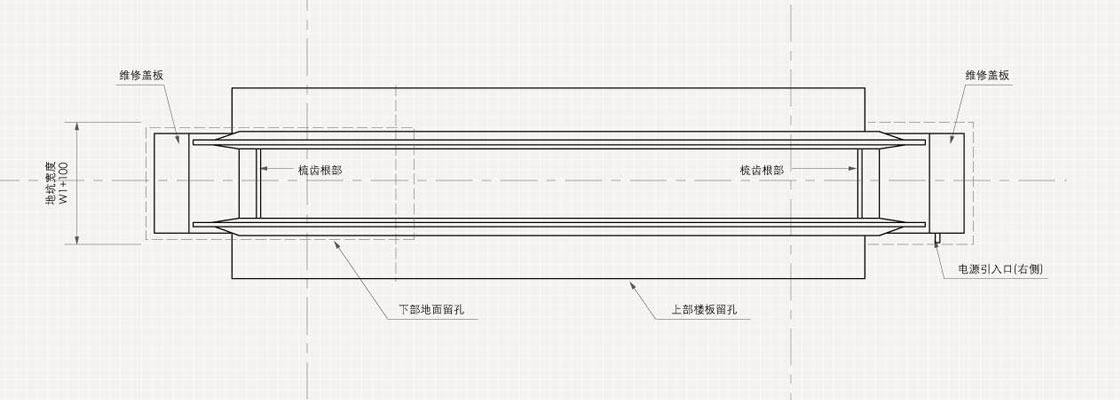

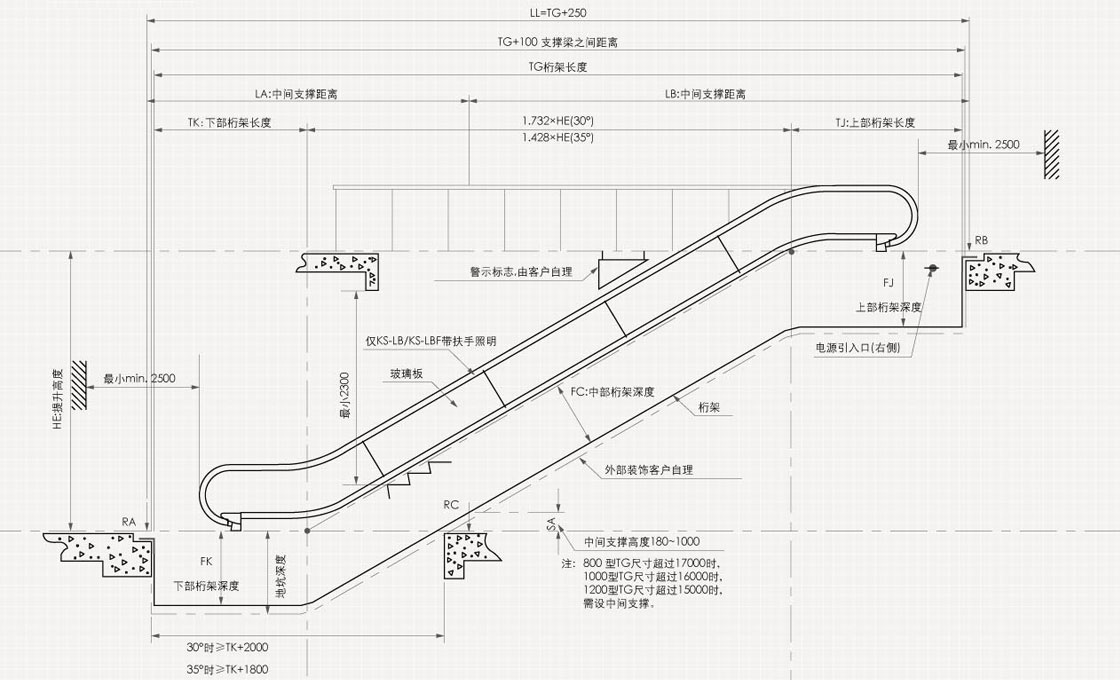

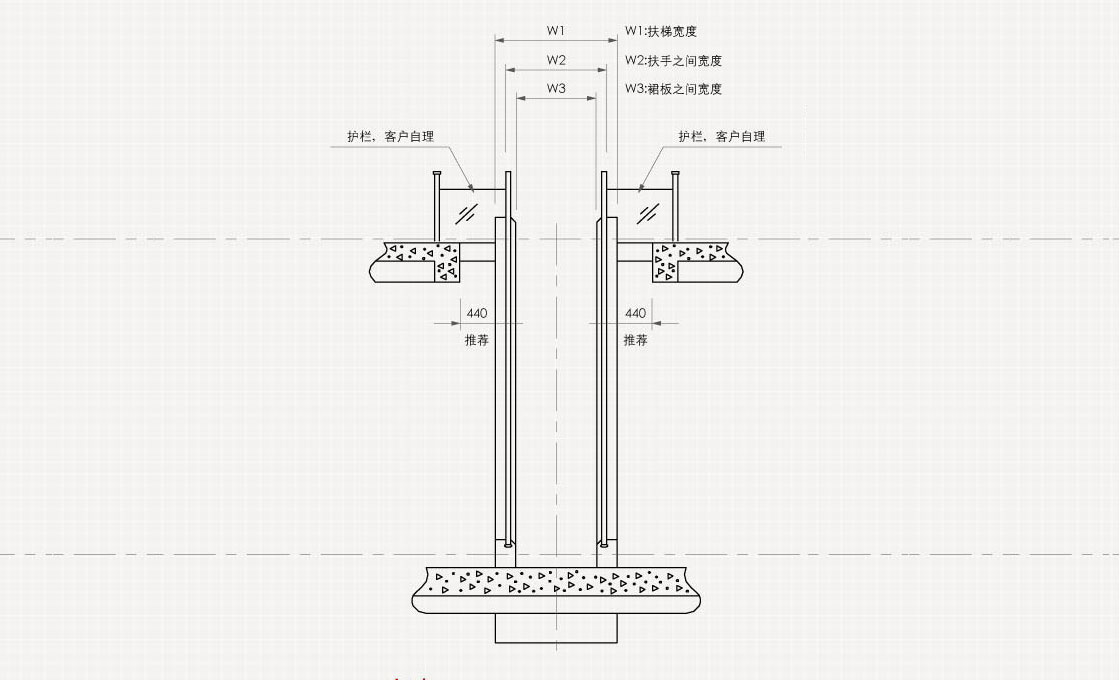

Civil Construction Drawing
Civil Construction Drawing
Civil Construction Drawing
project standard Optional Remark
An upper truss length TJ ( mm ) 2437 2437 ~ 5137 Tilt angle of 30 [deg.] , Level 2 the rung
2842 2842 ~ 5542 The inclination angle of 30 [deg. , Level 3 rung
2497 2497 ~ 5197 Tilt angle of 35 [deg.] , Level 2 the rung
2902 2902 ~ 5602 The inclination angle of 35 [deg. , Level 3 rung
The length of the lower portion of the truss the TK ( mm ) 2180 2180 ~ 4880 Tilt angle of 30 [deg.] , Level 2 the rung
2585 2585 ​​~ 5285 The inclination angle of 30 [deg. , Level 3 rung
2215 2215 ~ 4915 Tilt angle of 35 [deg.] , Level 2 the rung
2620 2620 ~ 5320 The inclination angle of 35 [deg. , Level 3 rung
An upper truss depth of the FJ ( mm ) 1060
The lower part of the truss depth of FK ( mm ) 1060
Central truss depth of the FC ( mm ) 918 The inclination angle is 30 ° when
938 The inclination angle is 35 ° when
Escalator Width ( mm ) 1550 Handrails nominal width of 1200mm when
1350 Handrails nominal width of 1000mm when
1150 Handrails nominal width of 800mm when
Intermediate support distance LA ( TK + 250 ) ~ 11000 The inclination angle of 30 [deg. , Armrest nominal width 1200mm , and has an intermediate support when
( TK + 250 ) ~ 11400 The inclination angle of 30 [deg. , Armrest nominal width 1000mm , and has an intermediate support when
( TK + 250 ) ~ 11700 The inclination angle of 30 [deg. , The nominal width of the handrail 800mm , and has an intermediate support when
( TK + 370 ) ~ 11000 Tilt angle of 35 [deg.] , Handrails nominal width of 1200mm , and there is an intermediate support when
( TK + 370 ) ~ 11400 The inclination angle of 35 [deg. , Armrest nominal width 1000mm , and has an intermediate support when
( TK + 370 ) ~ 11700 The inclination angle of 35 [deg. , Armrest nominal width 800mm , and has an intermediate support when
Intermediate support from the LB ( TJ + 240 ) ~ 11000 The inclination angle of 30 [deg. , Armrest nominal width 1200mm , and has an intermediate support when
( TJ + 240 ) ~ 11400 The inclination angle of 30 [deg. , Armrest nominal width 1000mm , and has an intermediate support when
( TJ + 240 ) ~ 11700 The inclination angle of 30 [deg. , The nominal width of the handrail 800mm , and has an intermediate support when
( TJ + 110 ) ~ 11000 Tilt angle of 35 [deg.] , Handrails nominal width of 1200mm , and there is an intermediate support when
( TJ + 110 ) ~ 11400 The inclination angle of 35 [deg. , Armrest nominal width 1000mm , and has an intermediate support when
( TJ + 110 ) ~ 11700 The inclination angle of 35 [deg. , Armrest nominal width 800mm , and has an intermediate support when

Remarks:
1. For the models of KS-SB, SBF KS, the handrail nominal width of 800mm is not available.
2. For RA, RB and RC, please contact the related salesmen of Shanghai Mitsubishi.
