Civil Construction Drawing

Civil Construction

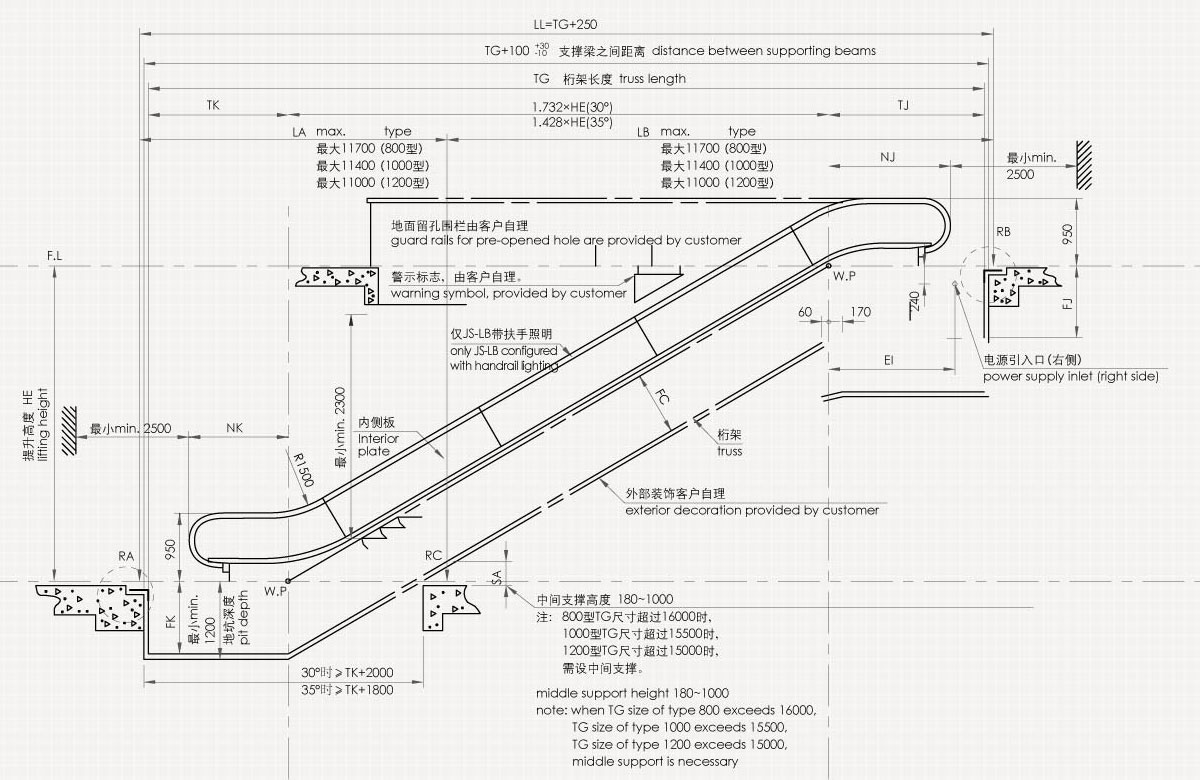

Civil Construction Drawing

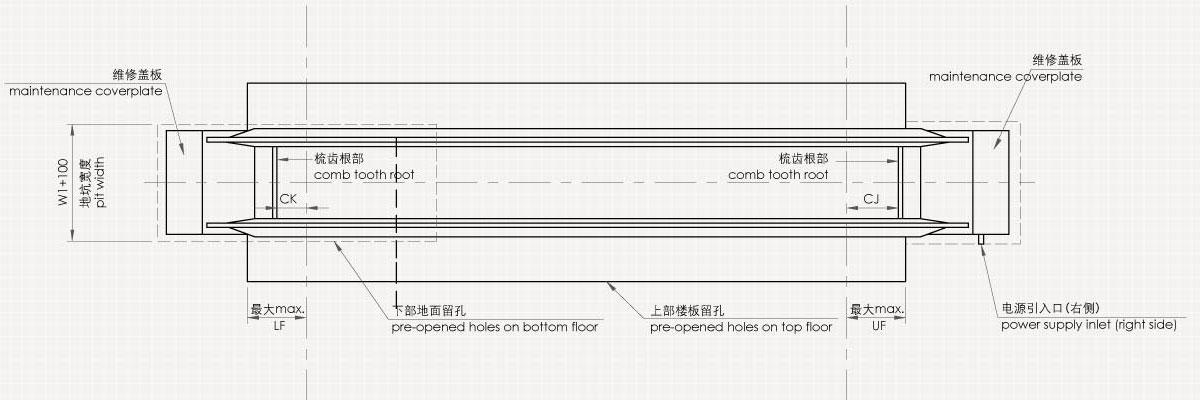

Civil Construction Drawing

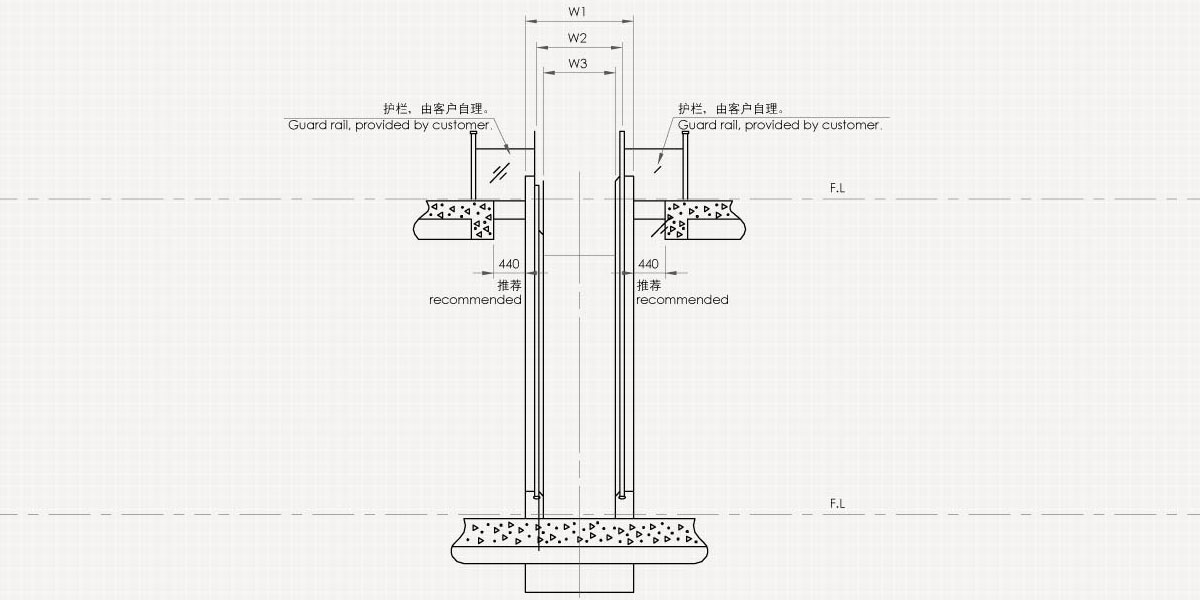

Civil Construction Drawing
Item Standard Optional Notes
TJ(MM)* 2560 2560 ~ 5260 HE<=6000mm/INC30°/
STEPHU2
2970 2970 ~ 5670 HE<=6000mm/INC30°/
STEPHU3
3380 3380 ~ 6080 HE<=6000mm/INC30°/
STEPHU4
2600 2600 ~ 5300 HE<=6000mm/INC35°/
STEPHU2/TK>=2350mm
3010 3010 ~ 5710 HE<=6000mm/INC35°/
STEPHU3/TK>=2350mm
3420 3420 ~ 6120 HE<=6000mm/INC35°/
STEPHU4/TK>=2350mm
2375 2375 ~ 2684 HE<=6000mm/INC35°/
STEPHU2/TK>=2350mm
2970 2970 ~ 5670 6001<=HE<=6500/STEPHU3
BNW1000,1200
3170 3170 ~ 5670 6001<=HE<=6500/STEPHU3
BNW800
3380 3380 ~ 6080 6001<=HE<=6500/STEPHU4
BNW1000,1200
3580 3580 ~ 6080 6001<=HE<=6500/STEPHU4
BNW800
3450 3450 ~ 6150 6501<=HE<=9500/STEPHU3
3860 3860 ~ 6560 6501<=HE<=9500/STEPHU4
TK(mm)* 2290 2290 to 5000 HE<=6000/INC30°/STEPHU2
2700 2700 ~ 5410 HE<=6000/INC30°/STEPHU3
3110 3110 ~ 5820 HE<=6000/INC30°/STEPHU4
2350 2265 ~ 5060 HE<=6000/INC35°/STEPHU2
2760 2760 ~ 5470 HE<=6000/INC35°/STEPHU3
3170 3170 ~ 5880 HE<=6000/INC35°/STEPHU4
FJ(mm) 1030 HE<=6500
1100 6501<=HE<=9500
FK(mm) 1030
FC(mm) 915
Escalator Width ( mm) 1550   BNM1200
1350   BNM1000
1150   BNM800
THE 0 ~ 11000   BNM1200: intermediate support number 1
0 ~ 11400   BNM1000: intermediate support number 1
0 ~ 11700   BNM800: intermediate support number 1
LB 0 ~ 11000   BNM1200: intermediate support number 1
0 ~ 11400   BNM1000: intermediate support number 1
0 ~ 11700   BNM800: intermediate support number 1

Notes:
1. Please contact with relative salesman of Shanghai Mitsubishi Elevator Co.,Ltd. (SMEC)
2. Min.values of TJ.TK size are recommended.
