Series-J

Features

Features

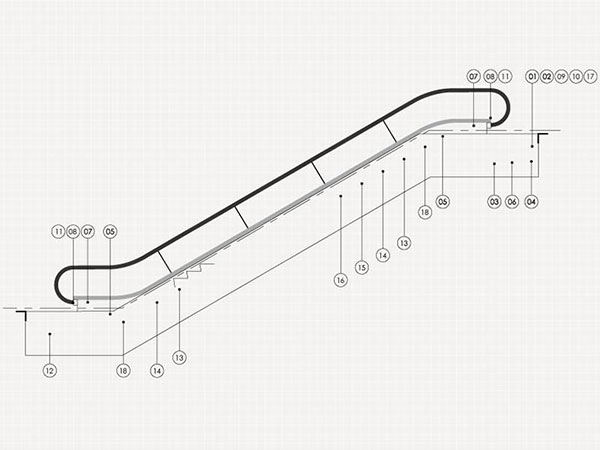

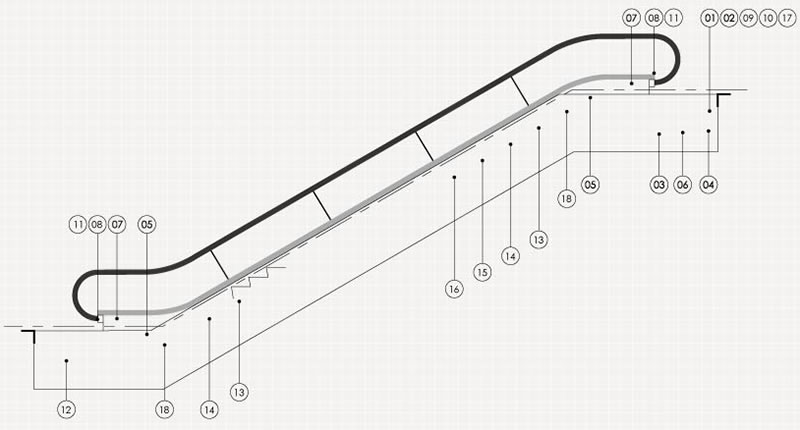

Func. Name	Func. Code	Func. Description
Standard Features
01 Protection Against Phase Error and Loss	3E	When input dynamic power source has any phase error or loss, cut off the main circuit and control circuit.
02 Protect Of Unintentional Reverse Of Direction Of The Travel	ARP	If reversal travel appears during operation, this device will cut off power supply to main drive machine and brake.
03 Auxiliary Brake	AUX-BK	Before travel speed exc-eeds the rated speed more than 1.4 times or changes specified direction, the auxiliary brake will stop the escalator.
04 Working Brake	BRK	Drive unit configures a working brake; when working brake works, it will stop moving staircase.
05 Comb plate Safety Device	CSS	When foreign matter is clamped in-between tread and comb plate, this device will cut off main drive machine and brake.
06 Drive chain Safety Device	DCS	If drive chain is broke or abnormally extended, this device will cut off Power supply to main drive machine and brake.
07 Emergency Stop But- ton	E-STOP	When emergency con- dition appears, operate this emergency stop button to cut off main drive machine and brake.
08 Handrail inlet protec- tion	HGB	This long and flexible r- ubber cover locates at the inter of top and bottom handrail inlets to prevent such accidents as hand clamping.
09 Over speed Governo- R1	HGD1	When travel speed exceeds the rated speed o- ver 1.2 times; this devic-e will work and cut off power supply to main drive machine and working brake.
10 Over speed Governo- r2	HGD2	When travel speed exceeds the rated speed o- ver 1.4times; this device will work and cut off power supply to auxiliary brake.
11 Handrail Inlet Safety Device	HGS	If foreign matters are engaged in handrail inter, this device will cut off power supply to main drive machine and brake.
12 Step Chain Safety Device	SCS	If step chain is broken or abnormally extended, this device will cut off power supply to main drive machine and brake.
13 Safety Device Agains- t Step Sagging	SRS	If any part of step is sagging or broken so that they cannot be regularly engaged with upper or lower comb plate, this device will cut off power supply to main drive machine and brake.
Optional Features
14 Safety Device for Be- nding Guide Rail	CRS	If objects are clamped in-between step tread and the adjacent one and thus causes abnormal operation of steps, this device will cut off power supply to main machine and brake.
15 Protection Device Against Handrail	HBS	When handrail belt is broken or excessively Loosened, this device will cut off power supply to main machine belt broken and brake.
16 Safety Device for Handrail Belt	HSS	When handrail belt speed is lower than step, this device will cut off power supply to main machine and brake.
17 Elevator Supervising System	SMOS	This system adopts computer to supervise operation and trouble condition of moving walkway.
18 Safety Device for Ski- rt Panel	SSS	When foreign matters are clamped in-between step and skirt plate, this device will cut off power supply to main drive machine and brake.

Note:*Configured when HE>6000.

Basic Specific

Item	Specification			Notes
Nominal Handrail Width (mm)	1200	1000	800*
Nominal Handrail Width （mm)	1280	1080	880	JS-B/JS-BF, JS-LB/JS-LBF
	1208	1008	/	JS-SB/JS-SBF
	1260	1060	860	JP-B/JP-BF
Width of Step or Pedal (mm)	1000	800	600
Theoretical Transportation Capacity(people/hour)	9000	6750	4500
Series Model	JS-B/JS-BF, JS-LB/JS-LBF, JS-SB/ JS-SBF, JP-B/JP-BE
Inclination Angle	30,35
Speed(m/s)	0.5
Lifting Height(mm)	2241~9500			When inclination angle is 30°
	2571~6000			When inclination Angle is 35°
Drive Power	380V50Hz 3 Phases
Lighting Power	220V50Hz Single Phase
Horizontal moving distance Of steps(mm)	Horizontal 2 Steps;Horizontal 3 Steps;Horizontal 4 Steps			When lifting height Is<=6000mm
	Horizontal3 Steps; Horizontal 4 Steps			When lifting height Is>6000mm
Operation Environment	In Door			Please contact with Shanghai Mitsubishi Elevator Co.Ltd.(SMEC)for outdoor use.
Passenger Photoelectric Type	Built-in Skirt Panel Photoelec- tric			Specification for varble frequency, optional configured for single elevator, Multiple elevators.
	External Photoelectric Column			Specification for variable frequency optional configured for single elevator. Please contact with Shanghai Mitsubshi Elevator Co.,Ltd. (SMEC) in the condition of multiple elevators.

Note:*This specification is not available for Js-SB/JS-SBF.

Power Supply

Drive Power Capacity(3 Phases)

Nominal Handrail Width(mm)	Lifting Height(mm)	Drive Power Capaclty
1200	HE<=4500	8
	4500<=6500<=6500	10.4
	6500<=9500<=9500	15.4
1000	HE<=5500	8
	5500<=6800<=6800	10.4
	6800<=9500<=9500	15.4
800	HE<=6500	8
	6500<=9500<=9500	10.4
Lighting Power Capacity(Single Phase)
Series Model	Lifting Height(mm)	Lighting Power Capacity
JS-LB/JS-LBF	HE<=4000	2
	4000<=6000<=6000	2.3
	6000<=9500<=9500	2.5
JS-B/JS-BF	HE<=9500	1.3
JS-SB/JS-SBF	HE<=9500	1.3
JP-B/JP-BF	HE<=9500	1.3
