CL-3 | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Painted Steel Plate * |
Lighting | Indirect lighting of plate block type through acrylic transparent mirror faceplate, translucent mirror faceplate, and half-slotted lighting is adopted on both sides. |
Ventilation Device | Painted steel plate grill ventilation and cross-flow fan |
Handrail | Stainless Steel Flat Handrail |
Car Floor | Parquet marble pattern shall be provided by customer. |
Note:
For wide car series, car inside height is standard, 20mm sink of car is standard configuration. When the car platform sinks 20mm, no decoration floor is provided, so customers can decorate with marble stone on their own.
Color number is selected and determined according to SMEC decoration color boards.
Item | Material | Notes | ||||||
Car Wall and Car Door | Film Paste Plate, Painted Plate, Hairline Stainless Steel Plate, Mirror Stainless Steel Plate, Hairline Etched Stainless Steel Plate, Mirror Etched Stainless Steel Plate, Metallic Paint Coating Stainless Steel Plate, Titanium Coating Painted Plate, Vibration Finish Stainless Steel Plate, Sand Pattern Stainless Steel Plate, Vibration Finish Etched Stainless Steel Plate, Sand Pattern Etched Stainless Steel Plate, Titanium Coating Hairline Stainless Steel Plate, Titanium Coating Mirror Stainless Steel Plate, Titanium Coating Vibration Finish Stainless Steel Plate, Titanium Coating Sand Pattern Stainless Steel Plate, Titanium Coating Hairline Etched Stainless Steel Plate, Titanium Coating Mirror Etched Stainless Steel Plate, Titanium Coating Vibration Finish Etched Stainless Steel Plate, Titanium Coating Sand Pattern Etched Stainless Steel Plate | For wide car. | ||||||
Painted Plate, Hairline Stainless Steel Plate | For deep car. | |||||||
Mirror | Front Half Mirror | Optional | ||||||
Kick plate | Polyvinyl resin kick plate(Dark-grey) | Car wall is made of non-stainless-steel | ||||||
Hairline stainless steel kick plate | Car wall is made of stainless steel | |||||||
Car floor | Polyvinyl chloride real stone floor | Standard | ||||||
Nora rubber floor | Optional | |||||||
Handrail | Car mode | Wide car series | Deep car series | Optional | ||||
Handrail type Handrail position position position |
Front | Side | 3 sides | Front | Side | 3 sides | ||
Stainless Steel Round Handrail![]() |
Selected | Not provided | ||||||
Stainless Steel Flat Handrail![]() |
Selected | |||||||
Dupont Corian Flat Handrail![]() |
Selected | Not provided |
CL-1 | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Painted Steel Plate* |
Lighting | Indirect lighting through milky translucent organic glass lamp shade. |
Ventilation Device | Plastic grill ventilation and cross flow type fan. |
Handrail | Stainless Steel Flat Handrail |
Car Floor | Nora rubber floor |
*Color number is selected and determined according to SMEC decoration color boards.
CL-2 | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Mirror plate or titanium plating mirror plate* |
Lighting | Indirect lighting through acrylic transparent mirror face plate, translucent mirror face plate, incandescent direct lighting is fit in four corners. |
Ventilation Device | Painted steel plate grill ventilation and cross-flow fan. |
Car Floor | Parquet marble pattern shall be provided by customer. |
*Color number is selected and determined according to SMEC decoration color boards.
CL-12 | Car Ceiling Applicable for wide car |
Car Ceiling | Diamond Silver Metallic Paint Coating Stainless Steel Plate |
Lighting | Indirect illumination though two lines of fluorescent lamps. |
Ventilation Device | Side Air Vent and Cross-flow Fan. |
Handrail | Stainless Steel Flat Handrail |
Car Floor | Polyvinyl chloride real stone floor |
CL-13 | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Painted Steel Plate* |
Lighting | Indirect illumination though one to three lines of fluorescent lamps with milky semi transparent organic glass lamp shade. |
Ventilation Device | Painted Steel plate grill ventilation and cross-flow fan. |
Handrail | Stainless Steel Flat Handrail |
Car Floor | Polyvinyl chloride real stone floor |
DD-JV-2 | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Painted Steel Plate* |
Lighting | Full lighting through milky translucent aciform organic glass plate and organic glass lamp columns are fit on two sides. |
Ventilation Device | Side Air Vent and Cross-flow Fan. |
Handrail | Stainless Steel Round Handrail |
Car Floor | Parquet marble pattern shall be provided by customer. |
*Color number is selected and determined according to SMEC decoration color boards.
DD-JII-3 | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Mirror Stainless Steel Plate |
Lighting | Full lighting through milky translucent organic glass plate, incandescent direct lighting is fit in four corners. |
Ventilation Device | Side Air Vent and Cross-flow Fan. |
Handrail | Stainless Steel Round Handrail |
Car Floor | Parquet marble pattern shall be provided by customer. |
ZCL-SP01(CAP<1600kg) | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Painted Steel Plate |
Lighting | Full lighting through milky translucent organic glass plate, incandescent direct lighting is fit in four corners. |
Ventilation Device | Side Air Vent and Cross-flow Fan. |
Car Floor | Parquet marble pattern shall be provided by customer. |
Color number is selected and determined according to SMEC decoration color boards.
ZCL-SP02(CAP<1600kg) | Elevator Car Ceiling Applicable for wide car |
Car Ceiling | Painted Steel Plate |
Lighting | Full lighting through milky translucent organic glass plate, incandescent direct lighting is fit in four corners. |
Ventilation Device | Side Air Vent and Cross-flow Fan. |
Car Floor | Parquet marble pattern shall be provided by customer. |
*Color number is selected and determined according to SMEC decoration color boards.
ZCL-CP01(CAP<1600kg) Elevator Car Ceiling |
|
Car Ceiling | Painted Steel Plate(ZY-001) |
Lighting | Painted steel plate interspersed by five down lights equipped with energy-saving tube, which possesses obvious effect on energy saving and avoids high heat from traditional incandescent bulb. |
Ventilation Device | Deflection blade guides the air volume to center part of car and improves the ventilation effect in car in hot summer. |
Handrail | Stainless Steel Flat Handrail |
Car Floor | Nora rubber floor |
Characteristics | Plane design, which prevents the car being scratched during furniture moving, is particularly suitable for residential building. |
ZCL-CP02(CAP<1600kg) Elevator Car Ceiling |
|
Car Ceiling | Painted Steel Plate(ZY-001) |
Lighting | Painted steel plate interspersed by six down lights equipped with energy-saving tube, which possesses obvious effect on energy saving and avoids high heat from traditional incandescent bulb. |
Ventilation Device | Deflection blade guides the air volume to center part of car and improves the ventilation effect in car in hot summer. |
Handrail | Stainless Steel Flat Handrail |
Car Floor | Nora rubber floor |
Characteristics | Plane design, which prevents the car being scratched during furniture moving, is particularly suitable for residential building. |
CL-4B Elevator Car Ceiling Applicable for 800kg deep car |
|
Car Ceiling | Painted Steel Plate |
Lighting | Indirect full lighting through milky translucent organic glass lamp shade. |
Ventilation Device | Plastic grill ventilation and cross-flow fan. |
Handrail | Stainless Steel Flat Handrail |
Car Floor | Polyvinyl chloride real stone floor |
*Color number is selected and determined according to SMEC decoration color boards.

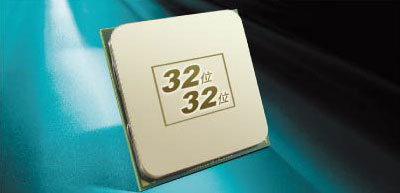

HOPE-II Mitsubishi passenger lift adopts dual-core 32-bit CPU, 32-bit high-speed digital-signal processor, high performance chips with over ten thousand circuits which are able to compile logic gate arrays on-site in large scale, thus taking a giant stride in strengthening its ability to process and respond to the system data, to the extent of qualitative improvement. Besides, Mitsubishi climbing elevator employs world leading SMT(Surface Mount Technology )technology, to realize full digital control in its true meaning, so that the system control performance and reliability reach the world advanced level.
Meanwhile, the sub-systems of Mitsubishi big capacity elevators, such as lift car instruction controller, in-car floor indicator, door-operator controller, buttons and floor indicator on each landing, etc., use respectively independent micro-processors, resulting in more efficiency and accuracy of the controlling. Moreover, the connection between sub-systems needs only two lines, greatly raising the reliability and flexibility of the system, and reducing the cost of maintenance.
Through independent research and development, SMEC craftily employs world leading technology to the design of passenger lift. HOPE-II passenger lift adopts the advanced CANBUS digital network control technology based on the field bus, to enhance its reliability and increase the transmit rate substantially, and at the same time to make digital transmission more flexible and prompt.
Due to the intelligent power module(IPM), the quick protection circuits will provide more effective protection for the power modules, further promoting the reliability of the driving system. In addition, direct-inserting connection is employed to link the driving control circuit E1 board and IPM module, so as to greatly strengthen the anti-interference ability of the system.

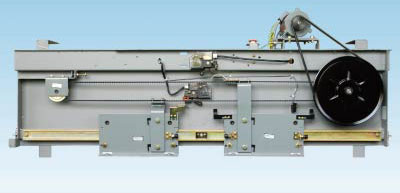

Mitsubishi passenger lift uses a 32-bit digital signal processor(DSP)to control the variable-frequency and variable-voltage driven door operator without link-arm, so that the closing moment can be automatically regulated according to the different door resistances of each landing, thus passenger lift door opening/closing even more steady, sensitive and safe, and leaving a feeling of cordiality and security to passengers. Further more, the application of this new technique can not only save more energy, but also offer ever easier maintenance and more reliable performance.
Each set of Mitsubishi passenger lift must pass through a real-time and accurate load test, and according to the feedback, provide adequate pre-control moment in the start-up, which realizes every light and steady start-up. Even during traveling, continuous adjustment of the moment control guarantees the passenger lift in steady operation all the time.
Item | Specifications | Notes | ||||
Speed(m/s) | 1 | 1.5 | 1.75 | 2 | 2.5 | |
Load(kg) | 550 | 550 | 550 | For wide car. | ||
630 | 630 | 630 | For wide car. | |||
800 | 800 | 800 | 800 | 800 | For wide car. | |
900 | 900 | 900 | 900 | 900 | For wide car. | |
1050 | 1050 | 1050 | 1050 | 1050 | For wide car. | |
1200 | 1200 | 1200 | 1200 | 1200 | For wide car. | |
1350 | 1350 | 1350 | 1350 | 1350 | For wide car. | |
1600 | 1600 | 1600 | 1600 | 1600 | For wide car. | |
630 | 630 | 630 | For wide car. | |||
800 | 800 | 800 | 800 | 800 | For wide car. | |
1050 | 1050 | 1050 | 1050 | 1050 | For wide car. | |
Travel TR(m) | 2.6-60 | 2.6-80 | 2.6-80 | For wide car. When rated load <=630kg and neither FE or FER is selected . | ||
2.6-55 | 2.6-80 | 2.6-80 | For wide car. When rated load <=630kg and neither FE or FER is selected . | |||
2.6-60 | 2.6-105 | 2.6-105 | 2.6-120 | 2.6-120 | For wide car. When rated load is630kg~1350kg and neither FE or FER is selected . | |
2.6-55 | 2.6-80 | 2.6-90 | 2.6-105 | 2.6-120 | For wide car. When rated load is630kg~1350kg and neither FE or FER is selected . | |
2.6-60 | 2.6-105 | 2.6-105 | 2.6-120 | For wide car. When rated load is 1600kg and neither FE or FER is selected . | ||
2.6-55 | 2.6-80 | 2.6-90 | 2.6-105 | For wide car. When rated load is 1600kg and neither FE or FER is selected . | ||
2.6-60 | 2.6-80 | 2.6-80 | For deep car. When rated load <=630kg and neither FE or FER is selected . | |||
2.6-55 | 2.6-80 | 2.6-80 | For deep car. When rated load <=630kg and neither FE or FER is selected . | |||
2.6-60 | 2.6-105 | 2.6-105 | 2.6-105 | 2.6-105 | For deep car. When rated load is630kg~1350kg and neither FE or FER is selected . | |
2.6-55 | 2.6-80 | 2.6-90 | 2.6-105 | 2.6-105 | For deep car. When rated load is630kg~1350kg and neither FE or FER is selected . | |
Landing | 2-20 | 2-32 | 2-32 | 2-32 | 2-32 | When neither FE or FER is selected. |
2-20 | 2-28 | 2-32 | 2-32 | 2-32 | When FE or FER is selected. | |
Operation mode | 1C~2BC, 2C~SM21, 3C~ITS-21,4C~ITS-21 | |||||
3C~ITS-2100, 4C~ITS-2100, 5C~ITS-2100, 6C~ITS-2100, 7C~ITS-2100, 8C~ITS-2100 | 3~8 units in group Control(ITS-2100). | |||||
Control mode | VFEA | |||||
Door Open type | 1D1G | |||||
Car type | Wide car, deep car | |||||
Door Open mode | Center opening type | For wide car | ||||
Two panel type Center opening type | For deep car | |||||
Door open bearing | Left opening, right opening. | For two panel type. | ||||
Dynamic power supply | 380V50Hz 3-phase-5-line system | |||||
Lighting power supply | 220V50HZ single phase | |||||
Minimum landing height(mm) | 2600 | Seller will supply the steel nosing if it is selected. | ||||
2800 | Buyer should supply the concrete nosing if it is selected. | |||||
Nosing | Seller will supply the steel nosing if it is selected. Buyer should supply the concrete nosing if it is selected. | |||||
Display range of landing | B1,B2,B3,B,G,M,-1,-2,-3,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48. | |||||
CWT position | Back mounted | For wide car. | ||||
Back mounted | For deep car. When rated load is 630kg. | |||||
Side mounted | For deep car. When rated load i> 630kg. | |||||
Safety gear of CWT | Not configured |
Item | Specifications | Notes | |||||||
Load(kg) | 550 | 630 | 800 | 900 | 1050 | 1200 | 1350 | 1600 | |
AA(mm) | 1400 | 1400 | 1400 | 1600 | 1600 | 2000 | 2000 | 2000 | |
BB(mm) | 1030 | 1100 | 1350 | 1350 | 1500 | 1350 | 1500 | 1750 | |
JJ(mm) | 800 | 800 | 800 | 900 | 900 | 1100 | 1100 | 1100 | |
HH(mm) | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | |
PD(mm) | >= 1400 | >= 1400 | >= 1400 | >= 1400 | >= 1400 | >= 1450 | >= 1450 | >= 1450 | When speed 1m/s is selected. |
>= 1550 | >= 1550 | >= 1580 | >= 1580 | >= 1620 | >= 1620 | >= 1570 | >= 1570 | When speed 1.5m/s or 1.75m/s is selected. | |
>= 1640 | >= 1690 | >= 1740 | >= 1740 | >= 1740 | >= 1750 | When speed 2m/s is selected. | |||
>= 1910 | >= 1940 | >= 1990 | >= 2040 | >= 2070 | When speed 2.5m/s is selected | ||||
OH(mm) | >= 4250 | >= 4250 | >= 4250 | >= 4250 | >= 4250 | >= 4350 | >= 4350 | >= 4550 | When speed 1m/s is selected. |
>= 4450 | >= 4450 | >= 4450 | >= 4450 | >= 4450 | >= 4550 | >= 4550 | >= 4750 | When speed 1.5m/s or 1.75m/s is selected. | |
>= 4530 | >= 4530 | >= 4530 | >= 4630 | >= 4630 | >= 4850 | When speed 2m/s is selected. | |||
>= 4800 | >= 4800 | >= 4800 | >= 4900 | >= 4900 | When speed 2.5m/s is selected. | ||||
AH(mm) | >= 1850 | >= 1850 | >= 1900 | >= 2200 | >= 2200 | >= 2600 | >= 2600 | >= 2640 | |
BH(mm) | >= 1630 | >= 1700 | >= 1950 | >= 1970 | >= 2120 | >= 2100 | >= 2480 | >= 2480 | |
AM(mm) | >= 2300 | >= 2300 | >= 2300 | >= 1900 | >= 2500 | >= 2800 | >= 3500 | >= 3500 | When speed 1m/s is selected |
BM(mm) | >= 3000 | >= 3000 | >= 3000 | >= 3000 | >= 3000 | >= 3500 | >= 3500 | >= 3500 | When speed >1m/s is selected. |
>= 3400 | >= 4000 | >= 4000 | >= 4100 | >= 4300 | >= 4100 | >= 4200 | >= 4500 |
Item | Specifications | Notes | ||
Load(kg) | 630 | 800 | 1050 | |
AA(mm) | 1100 | 1100 | 1100 | |
BB(mm) | 1400 | 1700 | 2100 | |
JJ(mm) | 800 | 800 | 900 | |
HH(mm) | 2100 | 2100 | 2100 | |
PD(mm) | >=1400 | >=1400 | >=1400 | When speed 1m/s is selected. |
>=1550 | >=1550 | >=1580 | When speed 1.5m/s or 1.75m/s is selected. | |
>=1600 | >=1650 | When speed 2m/s is selected. | ||
>=1950 | >=1950 | When speed 2.5m/s is selected. | ||
OH(mm) | >=4250 | >=4250 | >=4250 | When speed 1m/s is selected. |
>=4450 | >=4450 | >=4450 | When speed 1.5m/s or 1.75m/s is selected. | |
>=4450 | When speed 2m/s is selected. | |||
>=4800 | When speed2.5m/s is selected. | |||
AH(mm) | >=1800 | >=2000 | >=2150 | Be applicable with center opening type. |
>=1620 | >=1910 | >=1960 | Be applicable with two panel type. | |
BH(mm) | >=2000 | >=2120 | >=2520 | Be applicable with center opening type. |
>=2080 | >=2200 | >=2600 | Be applicable with center opening type. | |
AM(mm) | >=2420 | >=3200 | >=3300 | Be applicable with two panel type. |
>=2420 | >=3100 | >=3100 | Be applicable with two panel type. | |
BM(mm) | >=4000 | >=4000 | >=4300 | Be applicable with center opening type. |
>=4000 | >=4000 | >=4400 | Be applicable with two panel type. |
