MUTIBISHI Passenger Elevator

MITSUBISHI Passenger Elevator LEHY-II

MITSUBISHI Passenger Elevator LEHY-II

Shanghai Mitsubishi Elevator is from Japanese Mitsubishi, a base of elevators and escalators in Shanghai, is providing various kinds of LEHY-II series passenger elevators to meet different customer needs. Mitsubishi Elevator Shanghai has different residential elevators and commercial elevators for sale, supply large capacity lifts for carrying persons and goods, welcome to use Mitsubishi passenger elevators.

Integrated and harmonious car design

Mitsubishi carefully introduces 9 different styles of car decoration plans, subject to elevator requirements in restaurants,business offices and residential buildings.

More humanized configuration of light source, contact pieces and ventilation system combines strict and accurate processing technology; the extraordinary tactility and impression brought by the color, density and texture of material reflects the design concept of integration of human and passenger elevator and environmental intergrowth. All the details make the riding become more comfortable.

Integrated and harmonious car design

New Design of Operation Panel

Lengthened Profile Of Operation Panel

Height of new type operation panel is 1900mm, which is 1.3 to 1.9 times of the original and reflects extraordinary style.

Lengthened Profile Of Operation Panel
Large Button

Maximum diameter: 39.5mm, which is more convenient for accurate operation, contains more exquisite technique and provides more comfortable tactility.The provided multi styles of stainless steel, resin and even Braille buttons for the disable can satisfy any requirment.

Large Button

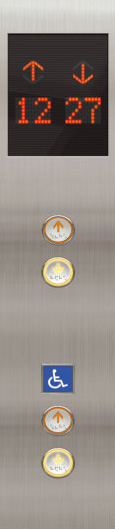

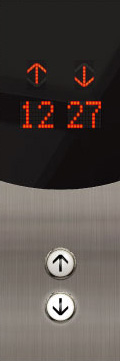

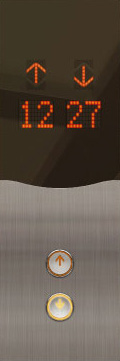

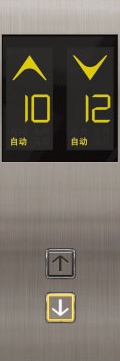

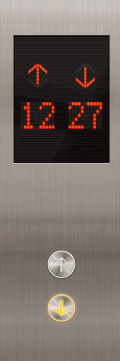

Large New Display

LED character height is 58mm, which is 1.6 times of the original and greatly enhances visibility. In addition, multi styles of liquid crystal operation panel display and landing liquid crystal display can be provided.

Large New Display
Intelligent Door Operator System

Intelligent Door Operator System

The advanced non-linkage design is adopted in the door operator, with advantages in terms of efficiency, energy-saving and low trouble rate. The trinity of 32 bit high-speed digital signal processor, velocity-current double closed-loop feedback control and VVVF speed control system ensure that opening and closing strictly follow the optimal speed and force curve to practice a perfect action.
The system of the Mitsubishi passenger elevator collects data of different door weights and door-moving resistance variation at each landing, adjusts the torque in an intelligent way to open and close the door, to make the door actions more smooth, effective safe and reliable

High Precision Load-Weighing Starting Device

High Precision Load-Weighing Starting Device

High-sensitive piezonresistive sensors are applied to measure the components through linear continuous weighing, including door, wire rope, compensation chain rope, etc,. only a few micro seconds of response time, to collect a real-time accurate measurement of elevator load.
It conducts weighing compensation by combining the per-torque at start, to eliminate fluctuation during start, running and stop, and ensure the comfort in the whole process of passenger elevator operation.

Outstanding Electronic Technology

Each sub-system such as component controller display, etc., adopts independent micro-processors and distributed data network linkage, thus substantially simplifying the connection between the sub-systems and enhancing the reliability and flexibility of the system.

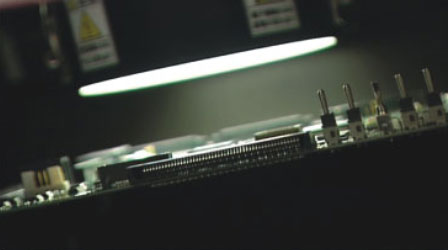

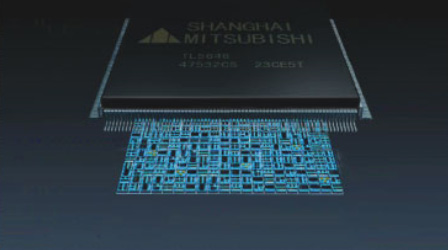

The printed circuit board(PCB) utilizes the surface mounting elements, in combination of the world advanced PCB surface mounting technology, to raise the integration of PCB and heighten the reliability and anti-jamming ability. 10k door massive field programmable gate array(FPGA) is employed in the electronic circuit design, so as to make the whole system into a single chip.

Environmental Protection

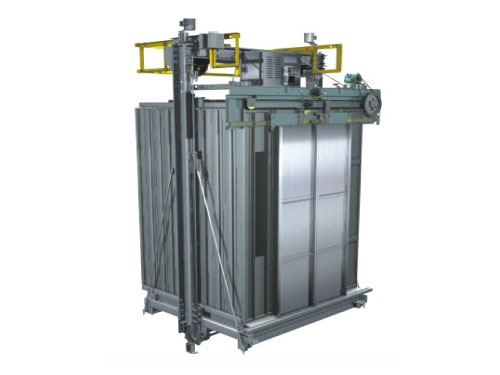

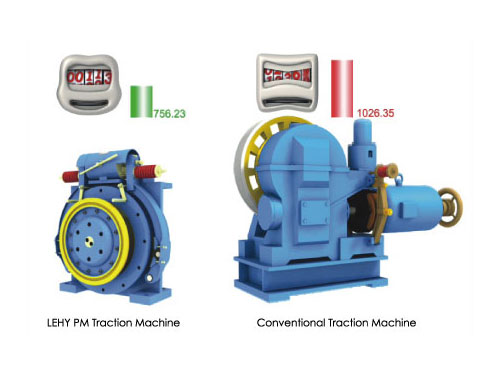

PM Synchronous Gearless Traction Machine

Gearless traction machine driven by high performance permanent magnet (PM) synchronous motor is applied, to markedly enhance the system efficiency about 30%~50% higher than conventional system and drastically reduce power consumption in a big margin.

The gearless traction technology is adopted, instead of the traditional worm gear reducer, to greatly decrease the noise from the machine room, by at least 10 dB compared with the products in the previous generation.

The PM synchronous gearless traction machine for Mitsubishi passenger lift needs no lubrication, thus uprooting oil pollution, and more compliant with the EP requirements.

Environmental Protection

Accuracy

All Digital Control, Space Voltage Vector Control Technology, Special Varied-Frequency System

The application of the world advanced VVVF driving technology of space voltage vector control for Mitsubishi elevators remarkably raises the voltage utilization rate and eliminates current harmonic wave and torque fluctuation to the fullest extent, effectively inhibits the vibration and noise.

By applying the world advanced intelligent power modules, the VVVF driving system of elevator is developed in professional module design, to seamlessly integrate the control of elevator an motor. The special driving system makes the elevator operation control prompter, more accurate and more reliable. Meanwhile, the module design structure reduces failure rate substantially.

Thanks to the data network control system with integrated 32-bit built-in CPU and 32-bit high-speed digital signal processor, the Mitsubishi elevator achieves the accurate systematic all-digital control and motor driving.

It adopts CAN bus communication technology, so as to ensure high reliability and accuracy of the information transmission in elevator.

For the first time, the ultra-high precision hybrid rate detection encoder is introduced into the Mitsubishi elevator driving system. This encoder is able to detect the motor magnetic pole positions and speed signals quickly and accuratly. Each motor rotation brings a output of 8192 pulses(but the traditional encoder does only 512 pulses), fully ensuring the accuracy of the passenger elevator operation control, to let passengers feel especially stable and comfortable.

Freedom

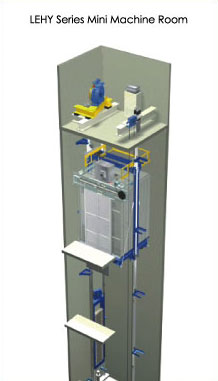

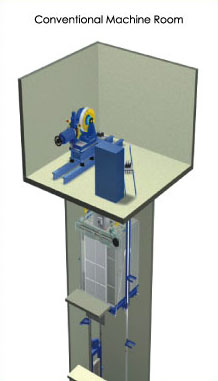

Real Small Machine Room Design

It ensures that the area of the machine room is totally same as the sectional area of the hoistway, so as to enhance the utilization rate of building, and lower the impact of the machine room on the appearance of building, thus granting more freedom to the design and layout of architecture.

In comparison with the passenger elevator without machine room, the service and maintenance for small machine room elevator is much easier.

  • Freedom
  • Freedom

Energy-Efficient

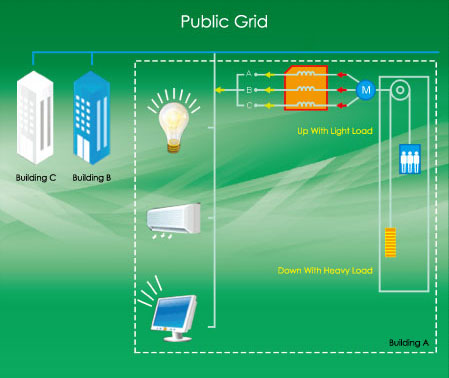

Energy Feedback Technique(Technology)

High efficient permanent magnetic synchronous traction machine improves the traction efficiency for more than 30%. Meanwhile, the energy-feedback technology by Mitsubishi helps convert the energy regenerated during the elevator operation to clean electricity by embeded PWM rectifier. The electricity, which completely conforms to the relative national electricity quality standards and rules, is provided to the electrical device within the electric grip.

Energy-Efficient

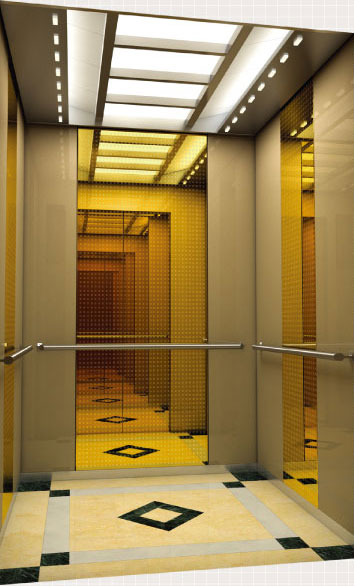

Luxury Model Car

Pavilion Of Eleance And Grace/ZCD-006X
Pavilion Of Eleance And Grace/ZCD-006X

Pavilion Of Elegance And Grace/ZCD-006X

Car Roof KD-J5-B06
Operation Panel ZCBE-H110
Front Wall Metallic Lacquer(Champagne Gold ZJS-005G)
Car Wall Left-right Ends of Side Wall and Rear Wall/metallic lacquer(champagne gold ZJS-005G) Center of Side Wall and Rear Rall/Titanium Plating Etched
Mirror Stainless Steel(ZHY-016+ZDT-002)
Car Door Titanium Plating Etched Mirror Stainless Steel
Entrance Transom Metallic Lacquer(Champagne Gold ZJS-005G)
Entrance Uprights Mirror Stainless Steel
Handrail Round Stainless Steel Handrail on Three Sides(ZYH-RH20)
Floor Parquet Floor (ZPH-005)(Other model is also optional)

Note: The color number can be selected according to SMEC decoration color table.


Pavilion of Blue Flowery Flavor/ZCD-005X
Pavilion of Blue Flowery Flavor/ZCD-005X

Elevator Pavilion of Blue Flowery Flavor/ZCD-005X

The latest environmental protection energy saving LED technology applied by SMEC:
1. Comparing to traditional fluorescent tube, the energy saving efficiency of LED can reach 50%.
2. Service lift is extended 10 times.
3. No UV or mercury-free waste for environmental protection

Car Roof ZCLGS03(Color Number Y116)
Operation Panel ZCBD-H210(Other model is also optional)
Front Wall Metallic Lacquer(Ice Blue ZJS-001G)
Car Wall Left-Right Ends of Side Wall and Rear Wall/Metallic Lacquer (Ice Blue ZJS--001G)
Car Door Metallic Lacquer(Ice Blue ZJS-001G)
Entrance Transom Metallic Lacquer(Ice Blue ZJS-001G)
Entrance Uprights Mirror Stainless Steel
Handrail Inclined Handrail on Both Left and Right Sides(ZYH-SA10L)
(Other model is also is also optional)
Floor Parquet Floor(ZPH-003)(Other model is also is also optional)

Note:The color number can be selected according to SMEC decoration color table.

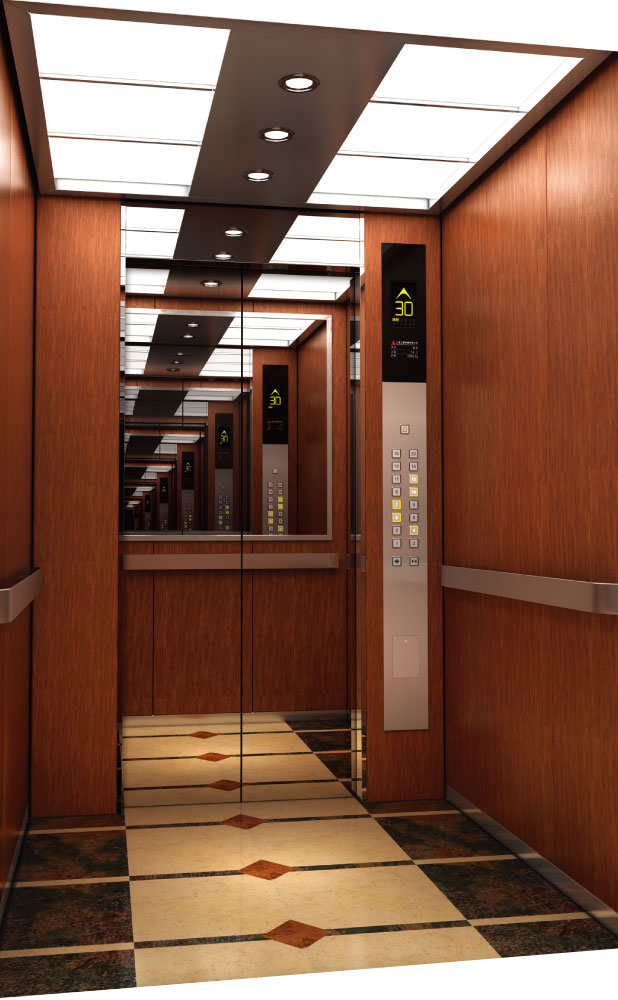

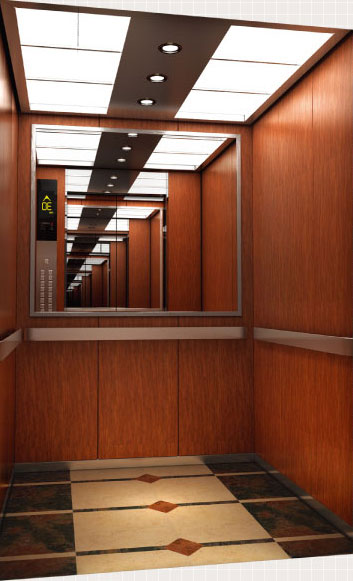

Pavilion Of Peaceful Wood Grain/ZCD-004X
Pavilion Of Peaceful Wood Grain/ZCD-004X

Elevator Pavilion Of Peaceful Wood Grain/ZCD-004X

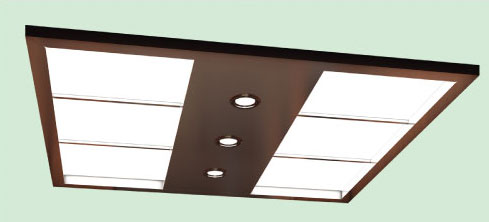

Car Roof KD-J11-B16
Operation Panel ZCBM-H610(Other model is also is also optional)
Front Wall Film Pressed Plate(ZYM-001)
Car Wall Film Pressed Plate(ZYM-001)
Car Door Mirror Stainless Steel
Mirror Semi Body Mirror
Entrance Transom Mirror Stainless Steel
Entrance Uprights Mirror Stainless Steel
Handrail Flat Handrail on Three Sides(ZYM-FH10) (Other model is also is also optional)
Floor Parquet Floor(ZPH-002)(Other model is also is also optional)

Note: The color number can be selected according to SMEC decoration color table.


Premier Car

Pavilion Of Starry Sky/ZCD-007G
Pavilion Of Starry Sky/ZCD-007G

Elevator Pavilion Of Starry Sky/ZCD-007G

Car Roof CL-6B
Operation Panel ZCBE-T310(Other model is also is also Optional
Front Wall Hairline Stainless Steel
Car Wall Both Left and Right Ends of Side Wall /Hairline Stainless Steel Rear Wall Center/ Etched Hairline Stainless Steel(ZHY-004)
Car Door Etched Hairline Stainless Steel
Entrance Transom Hairline Stainless Steel
Entrance Uprights W/O
Handrail Flat Stainless Steel Handrail on Three Side(ZHY-FH10)(Other model is also is also optional)
Floor Parquet Floor(ZPH-008)(Other model is also is also optional)

Note: The color number can be selected according to SMEC decoration color table.


Pavilion Of Elite/ZCD-008G
Pavilion Of Elite/ZCD-008G

Elevator Pavilion Of Elite/ZCD-008G

Car Roof KD-J11-B13
Operation Panel ZCBE-H110(Other model is also is also optional)
Front Wall Mirror Stainless Steel
Car Wall Both Left and Right Ends of Side Wall and Rear Wall/Etched Hairline Stainless Steel(ZHY-006) Center of Side Wall and Rear Wall /Mirror Stainless Steel
Car Door Etched Hairline Stainless Steel(ZHY-006)
Entrance Transom Mirror Stainless Steel
Entrance Uprights W/O
Handrail Flat Handrail (ZHY-FH10)(Other model is also is also optional)
Floor Parquet Floor(ZPH-009)(Other model is also is also optional)

Note: The color number can be selected according to SMEC decoration color table.


Pavilion Of Elegance/ZCD-006G

Elevator Pavilion Of Elegance/ZCD-006G

Car Roof DD-JV-2(Color Number Y005 Matte)
Operation Panel ZCBE-H610(Other model is also is also optional)
Front Wall Hairline Stainless Steel
Car Wall Both Left and Right Ends of Side Wall and Rear Wall/Hairline Stainless Steel Center of Side Wall and Rear Wall /Etched Hairline Stainless Steel(ZHY-015)
Car Door Etched Hairline Stainless Steel(ZHY-015)
Entrance Transom Etched Hairline Stainless Steel(ZHY-015)
Entrance Uprights W/O
Handrail Flat Stainless Steel Handrail on Both Side (ZHY-FH10)(Other model is also is also optional)
Floor Parquet Floor(ZPH-004)(Other model is also optional)

Note: The color number can be selected according to SMEC decoration color table.


Warm Car

Pavilion Of Color On Water/ZCD-003T

Elevator Pavilion Of Color On Water/ZCD-003T

Car Roof CL-13(color number Y010 )
Operation Panel ZCBE-C110(Other model is also is also optional)
Front Wall Coated Steel Plate(ZY014)
Car Wall Coated Steel Plate(ZY014)
Car Door Coated Steel Plate(ZY014)
Entrance Transom Coated Steel Plate(ZY014)
Entrance Uprights Hairline Stainless Steel
Handrail Flat Stainless Steel Handrail on Three Sides (ZHY-FH10)(Other model is also is also optional)
Floor PVC Real Stone(PR-18)(Other model is also is also optional)

Note: The color number can be selected according to SMEC decoration color table.

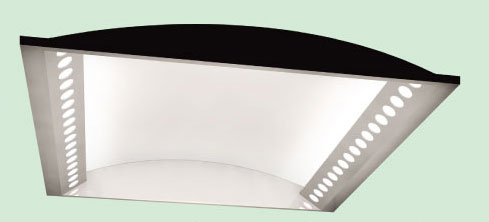

CL-12
CL-12 (Applicable for broad car)
Roof plate Steel Plate Painted with Metallic Lacquer of Diamond Silver
Lighting Direct illumination through lighting holes on the right and left sides, in combination with diffuse reflection, floodlighting.
Ventilation Air Vent channels on both sides and cross-flow fan.
DD-JV-2
DD-JV-2
Roof plate Coated Steel Sheet*
Lighting Full illumination through milk-white, translucent PMMA arch plate, with PMMA cylinder lamps on both sides.
Ventilation Air vent channels on both sides and cross-flow fan.

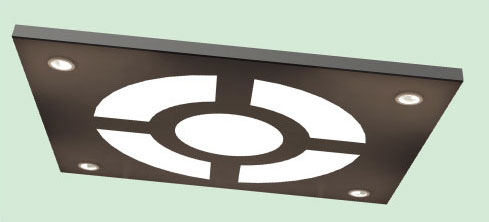

ZCL-GS03
ZCL-GS03 (CAP < 1600kg, Applicable for broad car)
Roof plate Coated Steel Sheet*
Lighting LED with PMMA Crystal Block
Ventilation Air vent channels on rear side and cross-flow Fan.
ZCL-DS07
ZCL-DS07 (CAP< 1600kg, Applicable for broad car)
Roof plate Coated Steel Sheet*
Lighting LED with PMMA Crystal Clock
Ventilation Air vent channels on both sides and cross-flow fan.
KD-J5-B06
KD-J5-B06 (Applicable for broad car)
Roof plate Hairline Stainless Steel
Lighting Hairline Stainless Steel Frame Paint Sprayed Upper Layer lnclined Ceiling Milky Lamp Plate llumination
Ventilation Air vent channels on both sides and cross-flow fan.

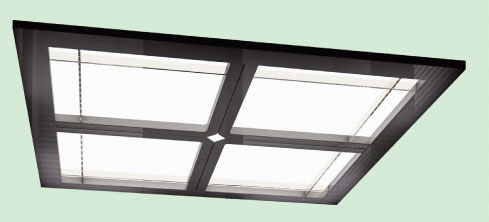

KD-J23-B11
KD-J23-B11 (Applicable for broad car)
Roof plate Coating Steel Sheet*
Lighting Aluminum plate frame, coated with fluorocarbon paint, in combination with tube lamps in the middle, and floodlighting on both sides
Ventilation Air vent channels on both sides and cross-flow fan.
CL-2
CL-2 (Applicable for broad car)
Roof plate Mirror Stainless Steel*
Lighting Indirect illumination through acrylic transparent mirror surface.
Translucent Mirror Finish Sheet. Direct lighting from incandescent lamps fixed on 4 comers.
Ventilation Air vent channels on rear side and cross-flow fan.
CL-6B
CL-6B (Applicable for broad car)
Roof plate Mirror Stainless Steel*
Lighting Indirect illumination through acrylic transparent mirror surface.
Translucent Mirror Finish Sheet.
Direct lighting from incandescent lamps fixed on 4 corners.
Ventilation Air vent channels on rear side and cross-flow fan.
CL-7
CL-7 (Applicable for broad car)
Roof plate Steel Sheet Painted with Diamond-Silver Metal Lacquer
Lighting Ldirect illumination through central milk-white illumination plate.
Ventilation Air vent channels on both sides and cross-flow fan.
CL-8
CL-8 (Applicable for broad car)
Roof plate Steel Sheet Painted with Pearl-Gray Metallic Lacquer
Lighting Ldirect illumination through central milk-white illumination plate.
Ventilation Air vent channels on both sides and cross-flow fan.
KD-J11-B13
KD-J11-B13 (Applicable for broad car)
Roof plate Steel Sheet Painted with Diamond-Silver Metal Lacquer
Lighting Full illumination through milk-white translucent plates, with a diamond adomment at the center
Ventilation Air vent channels on both sides and cross-flow fan.
KD-J11-B16
KD-J11-B16 (Applicable for broad car)
Roof plate Steel Sheet Painted with Diamond-Silver Metal Lacquer
Lighting Full illumination through milk-white translucent plates, with a diamond adornment at the center
Ventilation Air vent channels on both sides and cross-flow fan.
ZCL-SP01
ZCL-SP01 (Applicable for P08W, P10W, P14W, P14W, P18W)
Roof plate Coated Steel Plate*
Lighting Full illumination through milk-white, translucent PMMA, with direct lighting from incandescent lamps fixed on 4 corners
Ventilation Side air vent and cross-flow fan.
ZCL-SP02
ZCL-SP02 (Applicable foP08W, P10W, P14W, P14W, P18W)
Roof plate Coated Steel Plate*
Lighting Full illumination through milk-white, translucent PMMA, with direct lighting from incandescent lamps fixed on 4 corners
Ventilation Side air vent and cross-flow fan.
ZCL-CP01
ZCL-CP01 (CAP<1600kg, Applicable for broad car)
Roof plate Coated Steel Plate

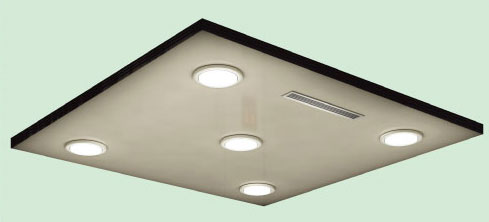

Lighting Dotted with 5 round lamps, each containing a energy tube, with obvious of energy saving, and avoiding high heat from the traditional incandescent lamp.
Ventilation Guiding vane fixed to direct the air flow to the middle part of the car, to improve the vent condition in the car in Summer.
Features Flat ceiing design, avoiding any scratch when moving furniture, especially suitable for elevator in residence
ZCL-CP02
ZCL-CP02 (CAP< 1600kg, Applicable for broad car)
Roof plate Coated Steel Plate
Lighting Dotted with 6 round lamps, each containing a energy tube, with obvious of energy saving, and avoiding high heat from the traditional incandescent lamp.
Ventilation Guiding vane fixed to direct the air flow to the middle part of the car, to improve the vent condition in the car in Summer.
Features Flat ceiing design, avoiding any scratch when moving furniture, especially suitable for elevator in residence furniture, especially suitable for elevator in residence
CL-13
CL-13
Roof plate Coated Steel Plate*
Lighting Direct illumination through milk-white illuminating plates on both sides.
Ventilation Drid air vent and cross-flow fan.

CL-10

No Car Roof
Wide car, and suitable for the counterweight fixed backward.


ZCL-CN02

No Car Roof
Wide car, and suitable for the counterweight fixed laterally.

Handrail Type

ZYH-FH10 Stainless steel flat handrail
ZYH-FH10 Stainless steel flat handrail
ZYH-RH20 Stainless steel round handrail
ZYH-RH20 Stainless steel round handrail
ZYH-SA10 Hard aluminum inclined handrail(without lower lighting)
ZYH-SA10 Hard aluminum inclined handrail(without lower lighting)
ZYH-SA10L Hard Aluminum inclined handrail(without lower lighting)
ZYH-SA10L Hard Aluminum inclined handrail(without lower lighting)

Car Operating Panel

  • ZCBE-C110
    ZCBE-C110
    Main Car Operating Panel
    ZCBE-C160
    ZCBE-C160
    Sub Operation
  • ZCBE-H110
    ZCBE-H110
    Main Car Operating Panel
    ZCBE-H160
    ZCBE-H160
    Sub Operation
  • ZCBT-H110
    ZCBT-H110
    Main Car Operating Panel
    ZCBT-H160
    ZCBT-H160
    Sub Operation
  • ZCBD-H210
    ZCBD-H210
    Main Car Operating Panel
    ZCBD-H260
    ZCBD-H260
    Sub Operation
  • ZCBM-H610
    ZCBM-H610
    Main Car Operating Panel
    ZCBM-H660
    ZCBM-H660
    Sub Operation
Specifications Faceplate Button Display Note
ZCBE-C110/ZCBE-C160 Hairline stainless steel Mirror Stainless steel Round Stainless Steel Button,
Emitting Orange Light
Digital LED Dot-Matrix Display
ZCBE-H110/ZCBE-H160
ZCBT-H110/ZCBT-H160 Round Alloy Button with Braille,
Emitting Orange Light
ZCBD-H210/ZCBD-H260 Round white Resin Button,
Emitting Brilliant white Light
5.7inch,high definition,true color, liquid crystal display
ZCBM-H610/ZCBM-H660 Square Stainless Steel Button,
Emitting Polychromatic Light
8.4inch,liquid crystal display
ZCBT-F050 Square Stainless Steel Button,
Emitting Polychromatic Light
  Sub operation panel for handicapped Suitable for wide car

Note:*Stands for that mirror stainless steel is non-standard configuration.



Car Operating Panel

  • ZCBT-F50
    ZCBT-F50
  • ZCBT-T110
    ZCBT-T110
    ZCBT-T160
  • ZCBT-T310
    ZCBT-T310
    ZCBT-T360
  • ZCBE-T110
    ZCBE-T110
    ZCBE-T160
  • ZCBE-T310
    ZCBE-T310
    ZCBE-T360
Specifications Faceplate Button Display Note
ZCBT-T110* Hairline stainless steel Mirror
Stainless steel
Stainless steel round button,
Emitting red orange light
Digital LED
dot-matrix display
When landing number 279
When landing number>28
and
349
ZCBT-T160*
ZCBT-T310* Hairline stainless steel Mirror
Stainless steel
8.4inch,high definition, liquid
crystal display
Front wall width>=349
ZCBT-T360*
ZCBE-T110* Hairline stainless steel Mirror
Stainless steel
Metallic alloy round button with Braille,emitting orange light Digital LED
dot-matrix display
When landing number 279
When landing number>28
and
349
ZCBE-T160*
ZCBE-T310 Hairline stainless steel Mirror
Stainless steel
8.4inch,high definition,liquid
crystal display
Front wall width>=349
ZCBE-T360

Note:*Stands for the non-standard configuration.



Landing Indicator

  • ZPIE-C110
    ZPIE-C110
  • ZPIT-H110
    ZPIT-H110
  • ZPID-H110
    ZPID-H110
  • ZPIM-H610
    ZPIM-H610
  • ZPIE-C120
    ZPIE-C120
  • ZPIT-H120
    ZPIT-H120
  • ZPID-H120
    ZPID-H120
  • ZPIM-H620
    ZPIM-H620
  • ZPIT-F110
    ZPIT-F110
  • ZPIT-F120
    ZPIT-F120
Decoration Type of Landing Call Button
Specifications Faceplate Button Note
ZPIE-C110 Hairline Stainless Steel
Mirror Stainless Steel
Round stainless
Steel button,
Emitting orange light
ZPIE-C120 Applicable for operation systems other than 1C-2BC
ZPIT-H110 Round alloy button with Braille,
emitting orange light

ZPIT-H120 Applicable for operation systems other than 1C-2BC
ZPID-H110 Round white resin button,
Emitting brilliant white light

ZPID-H120 Applicable for operation systems other than 1C-2BC
ZPIM-H610 Square stainless
Steel button,
Emitting
Polychromatic
light.

ZPIM-H620 Applicable for operation systems other than 1C-2BC
ZPIT-F110 Metallic alloy round button with Braille,
Emitting red orange light
Wheelchair landing indicator
ZPIT-F120 Wheelchair landing indicator,
suitable for the operation mode other than 1C-2BC

Note:*stands for that mirror stainless steel is(a)non-standard configuration.



Landing Call Button

  • ZHBE-C110
    ZHBE-C110
    ZHBE-C120
  • ZHBT-H110
    ZHBT-H110
    ZHBT-H120
  • ZHBD-H110
    ZHBD-H110
    ZHBD-H120
  • ZHBM-H610
    ZHBM-H610
    ZHBM-H620
  • ZHBT-F110
    ZHBT-F110
    ZHBT-F120
Decoration Type of Landing Call Button
Specifications Faceplate Button Note
ZHBE-C110 Hairline Stainless Steel
Mirror Stainless
Steel*1
Round stainless
Steel Button,
Emitting Orange Light
ZHBE-C120 Applicable for Operation Systems Other Than 1C-2BC
ZHBT-H110 Round Alloy Button with Braille,
Emitting Orange Light

ZHBT-H120 Applicable for Operation Systems Other Than 1C-2BC
ZHBD-H110 Round White Resin Button,
Emitting brilliant White Light

ZHBD-H120 Applicable for Operation Systems Other Than 1C-2BC
ZHBM-H610 Round White Resin Button,
Emitting brilliant White Light

ZHBM-H620 Applicable for Operation Systems Other Than 1C-2BC
ZHBT-F110*2 Metallic alloy round button with Braille,
emitting red orange light
Wheelchair landing indicator
ZHBT-F120*2 Wheelchair landing indicator,
suitable for the operation mode other than 1C-2BC

Note:*1Stands for that mirror stainless steel is(a)non-standard configuration.
*2Stands for the non-standard configuration.



Landing Direction Indicator

  • ZHLV-B011
    ZHLV-B011
  • ZHLV-E021
    ZHLV-E021
  • ZHLV-H010
    ZHLV-H010
  • ZHLV-E010
    ZHLV-E010
  • ZHLV-R011
    ZHLV-R011
  • ZHLV-R021
    ZHLV-R021
  • ZHLV-E031
    ZHLV-E031
Decoration Type of Landing Direction Indicator
Specifications Bottom Plate Light Chip Note
ZHLV-B011 Mirror Stainless
Steel
White translucent Optional
Emitting light
color. Warm white,pure white,red,
Green(Red as
Up,Green as
Down)
ZHLV-E021 Mirror Stainless
Steel
White translucent
ZHLV-H010 W/O White translucent
ZHLV-E010 Mirror Stainless
Steel
Transparent
ZHLV-R011 Mirror Stainless
Steel
White translucent
ZHLV-R021 Mirror Stainless
Steel
White translucent
ZHLV-E031 Mirror Stainless
Steel
White translucent

Hall Door and Jamb

  • E-102 Narrow Jamb
    E-102 Narrow Jamb

    Hall Call Button: ZPIT-H110
    Hall Door Finishing: Painted Steel Sheet
    Jamb Finishing: Painted Steel Sheet

  • E-302 Splayed Jamb
    E-302 Splayed Jamb(10°)

    Landing Direction Indicator: ZHLV-E011
    Hall Call Button: ZHBE-C110
    Hall Door Finishing: Stainless Steel Hairline
    Jamb Finishing: Stainless Steel Hairline

  • E-312 Splayed Jamb(10°)with Transom Panel
    E-312 Splayed Jamb(10°) with Transom Panel

    Landing Indicator: HID-A10
    Hall Call Button: ZHBE-R110
    Hall Door Finishing: Stainless Steel Etched Hairline(ZHY-006)
    Jamb Finishing: Stainless Steel Etched Hairline(Non-standard)

  • E-322 Splayed Jamb(10°)with Splayed Transom Panel
    E-322 Splayed Jamb(10°)with Splayed Transom Panel

    Landing Indicator: ZPIH-L610D
    Hall Call Button: ZHBQ-R110
    Hall Door Finishing: Stainless Steel Titanium Plating Mirror
    (ZHY-010, ZDF-002)
    Jamb Finishing: Stainless Steel Titanium Plating Mirror(ZDT-002)

Decoration Type of Hall Door and Jamb
Specifications Material Note
Hall Door Coated Steel Sheet, Hairline Finish Stainless Steel, Hairline Finish Etched Stainless Steel, Mirror Stainless Steel, Mirror Etched Stainless Steel, Metal Painted Steel Sheet, Hairline Finish Ti-Coated Stainless Steel, Mirror Ti-Coated Stainless Steel, Hairline Finish Etched Ti-Coated Stainless Steel, Mirror Etched Ti-Coated Stainless Steel, F-Design-ll Applicable for Wide War
Coated Steel Sheet, Hairline Finish Stainless
Steel, Hairline Finish Etched Stainless Steel
Applicable for Deep Car
Jamb Coated Steel Sheet, Hairline Finish Stainless Steel, Mirror Stainless Steel, Metal Painted Steel sheet, Hairline Finish Ti-Coated Stainless Steel, Mirror Ti-Coated Stainless Steel Applicable for Wide War
Coated Steel Sheet, Hairline Finish
Stainless
Steel
Applicable for Deep Car
Still Die-Pressed
Hard Aluminum

Note:*Stands for that mirror stainless steel is non-standard configuration.



Car Operating Panel

  • HID-A10
    HID-A10
    HID-A20
    HID-A20
  • ZPIH-L610D
    ZPIH-L610D
  • ZPIH-L610
    ZPIH-L610
Decoration Type of Landing Indicator
Specifications Description Note
HID-A10 Large Landing Indicator Applicable for Jamb-
Type E-312
HID-A20 Large Landing Indicator Applicable for jamb
Tybe Other than E-312 and E322
ZPIH-L610D 8.4 inch high-definition liquid crystal display Applicable for jamb
Tybe E-322
ZPIH-L610 Hairline stainless steel,8.4 inch high-
definition liquid
crystal display
Applicable for jamb
tybe other than E-312,
E-322

Painting (Add Simple and Clear Color Samples)

(Refer to Shanghai Mitsubishi decoration color plate for more paint colors)


  • ZY-014
    ZY-014
  • ZY-015
    ZY-015
  • ZY-016
    ZY-016

Film pressed steel plate

(Refer to Shanghai Mitsubishi decoration color plate for more film pressed steel plate types.)

  • ZYM-001
    ZYM-001
  • ZYM-007
    ZYM-007


Etched Pattern

(Refer to Shanghai Mitsubishi decoration color plate for more eached patterns.)

  • ZHY-004
    ZHY-004
  • ZHY-006
    ZHY-006
  • ZHY-008
    ZHY-008
  • ZHY-015
    ZHY-015
  • ZHY-016
    ZHY-016


Parquet Floor

(PVC real stone, nora floor can also be selected,and color number can be Selected according to Shanghai Mitsubishi decoration color plate.)

  • ZPH-002
    ZPH-002
  • ZPH-003
    ZPH-003
  • ZPH-004
    ZPH-004
  • ZPH-005
    ZPH-005
  • ZPH-007
    ZPH-007
  • ZPH-008
    ZPH-008
  • ZPH-009
    ZPH-009
  • ZPH-011
    ZPH-011
Material Corresponding Table
Specifications Material Note
Car Wall Film Pressed Steel Plate, Coated Steel
Plate, HairlineStainless Steel Plate, Hairline Etched Stainless Steel Plate, Mirror Stainless
Steel Plate, Mirror Etched Stainless Plate, Sand Pattern Coated Steel Plate, Laminated Steel Plate, Steel Plate
Painted with Metallic Lacquer, Vibration Stainless Steel Plate, Sand Pattern Stainless Steel Plate
Applicable for Wide Car
Film Pressed Steel Plate, Coated Steel Plate, Hairline Stainless Steel Applicable for Deep Car
Front Wall Film Pressed Steel Plate, Coated Steel Plate, Vibration Stainless Steel, Hairline Etched Stainless Steel Plate,
Mirror Stainless Steel Plate, Mirror Etched Stainless Plate, Sand Pattern Coated Steel Plate, Laminated Steel
Plate, Steel Plate Painted with Metallic Lacquer,
Vibration Stainless Steel Plate, Sand Stainless Steel ,
Hairline Ti-Coated Stainless Steel Plate, Mirror Ti-Coated Stainless Steel Plate, Vibration Ti-Coated Stainless Steel Plate, Sand Ti-CoatedStainless Steel Plate
Applicable for wide car
and integral operation
panel configuration.
Hairline Stainless Steel Plate, Mirror Stainless Steel Plate Applicable for wide car
and integral operation
panel configuration.
Film Pressed Stainless Steel Plate, Coated Steel Plate, Hairline Stainless Steel Plate Applicable for Deep car
Car Door Coated Steel Plate, Steel Plate Painted with Metallic Lacquer, Hairline Stainless Steel, Sand Pattern Coated Steel Plate, Film Pressed Stainless Steel Plate, Laminated Steel
Plate, Hairline Etched Stainless Steel, Hairline Ti-Coated Stainless Steel Plate, HairlineEtched Ti-Coated
Stainless Steel Plate, Mirror Stainless Steel,
Mirror EtchedStainless Steel, Mirror
Ti-Coated Stainless Steel, Mirror Etched
Ti-Coated Stainless Steel, Mirror Etched
Ti-Coated Stainless Steel, Vibration Stainless Steel,
Vibration Ti-Coated Stainless Steel, Sand Pattern Stainless Steel, Sand Pattern Ti-Coated Stainless Steel Plate.
Applicable for Wide Car
Film Pressed
Stainless Steel Plate, Coated Steel Plate, Hairline Stainless Steel Plate
Applicable for Deep Car
Basic Specifications
Item Specifications Remark
Rated Speed 1 1.6 1.75 2 2.5
Rated Capacity
(kg)
630 630 630
800 800 800 800 800 When CWT is
rear-mounted
800 800 800     When CWT is
side-mounted
1050 1050 1050 1050 1050 When CWT is
rear-mounted
1050 1050 1050     When CWT is
side-mounted
1200 1200 1200 1200 1200 When CWT is
rear-mounted
1350 1350 1350 1350 1350 When CWT is
rear-mounted
1600 1600 1600 1600   When CWT is
rear-mounted
TR(m)Max.Lift 55 90 90 105 120
Max.Stops 18 28 28 32 32
Operation Mode 1C-2BC,2C-SM21,2C-ITS-21,3C-ITS-21,4C-ITS-21,3C-ITS-2100,4C-ITS-2100,5C-ITS-2100,6C-ITS-2100,7C-ITS-2100,8C-ITS-2100
Control Mode VFG-L
Specification
Code
P08W, P08D When capacity is 630kg
P10, P10W, P10D When capacity is 800kg
P14W, P14D, P14 When capacity is 1050kg
P16W When capacity is 1200kg
P18W When capacity is 1350kg
P21 When capacity is 1600kg
Car Type Deep Car Specification code is P10D,
P14D or door opening mode is two Panel folding door.
Wide Car Specification code is not
P10D,P14D or door opening mode is center open.
Door Opening
Type
1D1G
Door Opening
Mode
Center Open Mode Specification is not P08D,P10D
P14D.
Two Panel Folding Mode, Center Open Mode Specification is P08D,P10D,P14D.
Door Open
Direction
Open From Left, Open From Right Door open
mode is two
Panel folding
mode.
Dynamic Power 380V50Hz 3Phases,5Lines
Lighting Power 220V50Hz Single Phase
Min.Landing
Height
2800 The Buyer shall supply when concrete
nosing is
configured.
2600 The Seller shall supply when steel nosing is
configured.
Landing Display
Range
B1,B2,B3,B,G,M,-1,-2,-3,1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,45,46,47,48
